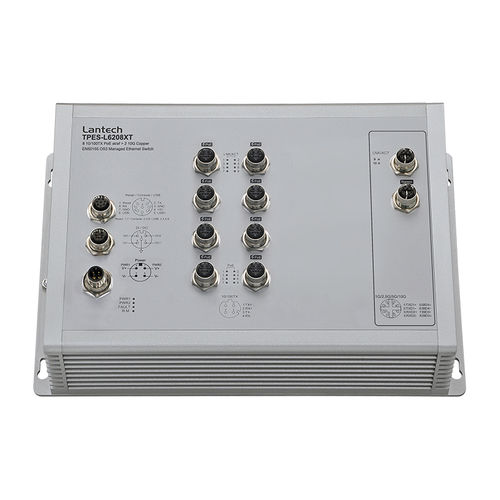

Managed ethernet switch TPES-L6208XT series

10 ports5Gwall-mount

8 10/100TX + 2 10G Copper with 8/10 PoE EN50155 OS3 Managed Ethernet Switch w/ Enhanced G.8032 Ring, PXE ; WVI input -Total 8 10/100TX + 2 1G/2.5G/5G/10G Copper Ethernet Switch w/8/10 (8 copper + 2 uplink 10GT copper) PoE ports -Support IEEE802.3at/af up to 30W per port PoE management incl. Detection and Scheduling -Support PXE to verify switch firmware with the latest or certain version on server -Enhanced G.8032 ring protection < 20ms for single ring. Supports enhanced mode and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 8 MSTI /RSTP; support MRP ring -Miss-wiring avoidance & node failure protection -User friendly UI, including auto topology drawing ; Complete CLI -Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS ACL L2/L3,TACACS+, QinQ -Protocol based VLAN ; IPv4 Subnet based VLAN -Enhanced Environmental Monitoring for temp. actual input voltage, current and total power load -Optional smart bypass 10GigaT ports in case of power failure, CPU hang (one pair) -IP54 aluminum enclosure -Inrush current protection -Optional L3Lite or IEC 61375-2-5 TBN features to be upgradable -USB port to upload & download the configuration file -Dual power input 16.8V~137.5V with galvanic isolation between input power, PoE and system -Factory reset pin to restore factory default setting -Wide range operation temperature :-40~70C/-40~158F
