Folding door

PVCfabricmetal

Product Overview

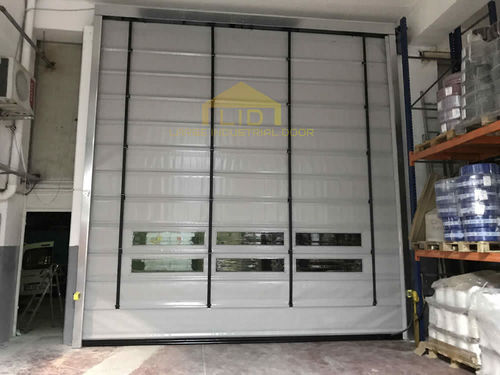

High-speed folding PVC fabric door designed for industrial applications to accelerate traffic flow while reducing dust ingress, cross-contamination and energy losses by separating work zones. The door operates fully automatically and manages the passage of vehicles and construction machines. Optional sight windows improve visibility and reduce accidents. A photocell safety system stops and reverses the door on obstacle detection during automatic descent.

Usage Areas
Typically installed indoors on forklift routes, production lines and logistic passages; suitable for outdoor installation where site security and environmental conditions allow.

Key Features

• Very high operating speed suitable for intensive, continuous use.
• Automatic opening/closing module with programmable closing delay.
• Optional loop detector for vehicle-triggered automatic operation (LOOP integration).
• Photocell safety to stop and reverse on obstacle detection.
• Optional sight windows for improved visibility and accident reduction.
• Available in multiple colors to match facility identification.

Standard Equipment

• Tarpaulin (fabric curtain)
• Motor
• Control card
• Side guides
• Upper mechanism

Production Time
Typical production time for a single unit is approximately 10 days; lead time varies with customization level and order volume.

Price
Price depends on custom dimensions, destination and selected options; standard pricing is not provided for bespoke productions.

Technical specifications

• Fabric: Brand: Mehler Texnologies; Weight: 900 g/m²; Tensile Strength: 4000 N/50 mm; Temperature Resistance: -40 °C / +70 °C; Fire Resistance: ISO 3795 <100 mm/min.
• Motor: 0.37–1.1 kW, 1500 RPM, IE2, 230/400 V, 50 Hz, IP55, 3-phase; Reduction Gear: DS050 İ:15; Brake: ENR02 220 V cooled + manual.
• Wind Resistance: Resistant to wind pressure up to 80 km/h.
• Metal Parts: Galvanized steel.
• Color Options: Multiple color choices available (color chart).
• Optional Specs:
  • Curtain photocell
  • Remote control
  • Loop detector
  • Buzzer
  • Radar
