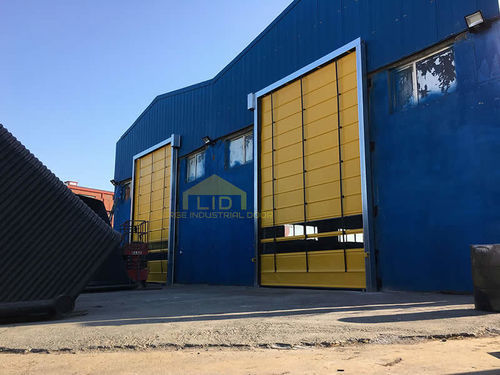

Roll up door HSR100

PVCindoorfor overhead cranes

Overview
High-speed PVC fabric rolling doors are compact vertical-opening doors designed for fast traffic flow and reduced air exchange in industrial and logistics environments. They detect metal objects (vehicles) with sensors and operate automatically, offering visibility through sight windows and safety via a photocell curtain that stops and lifts the door if an obstacle is detected.

Where they are used
Commonly installed on internal forklift aisles, warehouse passages and production areas. They can be fitted on external façades where security requirements allow.

Features

• Continuous high-speed operation for intensive daily use
• Automatic closing module
• Photocell curtain that stops and lifts the door on obstacle detection
• Integration with control panels, loop detectors, card access, motion radar and dry-contact modules
• Sight windows to improve visibility and reduce collisions

Standard equipment

• Tarpaulin (fabric curtain)
• Motor
• Control board (EP500)
• Side guides
• Top rolling mechanism

Production time
Approximately 10 days for a single unit, depending on workload.

Price
Made-to-measure product; price depends on dimensions, project conditions and selected options.

Technical drawing and gallery
Technical drawings, renders and photo gallery are available for installation reference and visual options.

Specification table
FABRIC
Brand: Mehler Texnologies
Weight: 900 g/m²
Tensile strength: 4000 N/50 mm
Temperature resistance: -40 °C / +70 °C
Fire resistance: ISO 3795 <100 mm/min

Motor
Power: 0.37–1.1 kW; 1500 RPM; IE2; 230/400V; 50Hz; IP55; 3-phase
Reduction gear: DS050 İ:15
Brake: ENR02 220V cooled + manual

Control unit
EP500 with LCD screen

Wind resistance
Up to 80 km/h

Metal parts
Galvanized steel

Shaft
Aluminum extrusion

Color and options
Multiple colors available. Optional accessories: curtain photocell, remote control, loop detector, buzzer, radar, card access integration.

Technical specifications

• Product type: High-speed PVC fabric rolling door
• Model: HSR100 (example shown in media)
• Fabric brand: Mehler Texnologies, 900 g/m²
• Fabric tensile strength: 4000 N/50 mm
• Operating temperature: -40 °C to +70 °C
• Fire resistance: ISO 3795 <100 mm/min
• Motor power: 0.37–1.1 kW; 1500 RPM; IE2; 230/400V; 50Hz; IP55; 3-phase
• Reduction gear: DS050 İ:15
• Brake: ENR02 220V cooled + manual
• Control unit: EP500 with LCD
• Wind resistance: up to 80 km/h
• Metal components: galvanized steel
• Shaft: aluminum extrusion
• Standard supply: curtain, motor, control board, side guides, top mechanism
• Options: curtain photocell, remote control, loop detector, buzzer, radar, card access
• Lead time: ~10 days for one unit (subject to workload)
