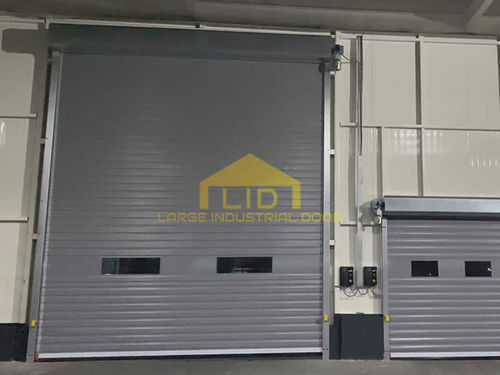

PVC door HSR200

for cold storageindoorindustrial

Overview
High-speed PVC insulated spiral fabric doors provide rapid access control for garages and industrial openings while reducing dust ingress, uncontrolled air exchange and energy loss. They operate fully automatically and can integrate vehicle detection sensors and safety photocells for secure automatic cycling.

Usage areas
Typical installations include parking facilities, refrigerated storage entrances, warehouse doors and exterior industrial openings requiring fast operation, thermal insulation and controlled access.

Features

• Designed for continuous high-speed operation with durability for frequent cycles
• Customizable curtain colors and optional timed closing modules
• Obstacle detection: photocell reverses movement on detection
• Compatibility with remote control, loop detectors, card access systems, motion radar and dry contact integrations
• Wind-resistant construction suitable for high wind pressure locations

Equipments

• Curtain (canvas) — Mehler Texnologies, 900 g/m², tensile strength 4000 N/50 mm, temperature range -40 °C / +70 °C, fire resistance ISO 3795 <100 mm/min
• Motor: 0.37–1.1 kW, 1500 RPM, IE2, 230/400V, 50Hz, IP55, 3-phase
• Reduction gear: DS050 İ:15
• Brake: ENR02 220V, cooled + manual
• Control unit: EP500 with LCD screen
• Switch system: special mechanical switch
• Side guides and upper mechanism in galvanized steel

Production Time
Average lead time is approximately 10 days per door, subject to project complexity, dimensions and order backlog.

Cost
Products are made-to-measure. Final price depends on dimensions, required options (sensors, access systems, higher-speed drivers) and project specifications. Contact supplier for a customized quotation.

Caractéristiques / spécifications techniques

• Fabric - Brand: Mehler Texnologies
• Fabric - Weight: 900 g/m²
• Fabric - Tensile Strength: 4000 N/50 mm
• Fabric - Temperature Resistance: -40 °C / +70 °C
• Fabric - Fire Resistance: ISO 3795 <100 mm/min
• Motor: 0.37-1.1 kW, 1500 RPM, IE2, 230/400V, 50Hz, IP55, 3Phase
• Reduction Gear: DS050 İ:15
• Brake: ENR02 220V, cooled + manual
• Control Unit: EP500 with LCD screen
• Switch System: Special mechanical switch
• Wind Resistance: resistant to high wind pressure
• Insulation: bottom seal closes against ground to limit airflow and preserve temperature stability
• Standard Speed: 70 cm/s (optional higher speed available with speed driver)
• Metal Parts: Galvanized steel
• Color Options: multiple color options available
• Optional Specs:
  • Curtain photocell
  • Remote control
  • Loop detector
  • Buzzer
  • Radar
