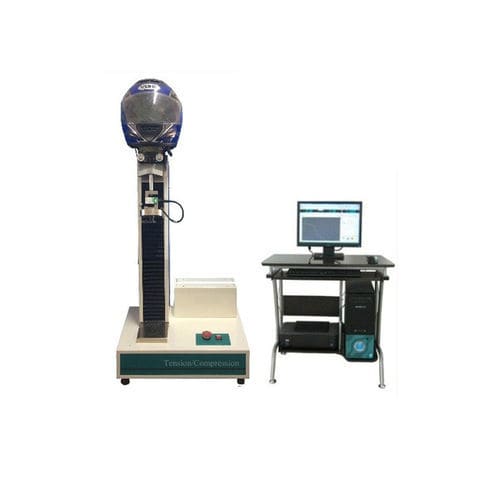

Tensile testing machine T002

tensile strengthperformancestatic load

Application: The equipment is mainly used to test the tensile strength performance of the helmet strap, and can control and measure the loading and displacement in the test. Conforms to standard EN13087, GB811: 2010 and QCVN 02: 2008/BKHCN. It is widely used in the domestic and foreign helmet manufacturing industry and safety supervision and testing departments. Parameter: - Model: T002 - Max. Load: 1000N - Load accuracy: 1% - Displacement resolution: 0.01mm - Load increasing speed: 0-500N/S (adjustable) - Load keep time: 0-60 minutes - Standard procedure: From preload to test load 30 seconds. And keeping 2 minutes (adjustable) - Test space: 400mm - Head form: Size C (other sizes can be ordered) - Tension Fork roller: Diameter 25mm and distance in 75mm - Power Supply: 1Phase, 220V, 50Hz Examples of test procedures: - QCVN standard: 45N preload and 500N load test (with Helmets have circumference >500 mm) 25N preload and 300N load test (with Helmets have circumference ≤ 500 mm) - GB 811-2010 standard: 23N preload and 136N load test (class A) 15N preload and 90N load test (class B) Features: - Full Computer loop control the preload and increasing load of test, the loading precision is less than 1%. - Preload and testing load can be set from 0 to 1000N. - Load increasing time and keeping time can be set in the software. - Test result curve real time showing, printing and test result database supported. - With PU resin head mold C, all standard regular head forms can be ordered. - Loading by Servo motor, displacement measured by optical encoder. - No manual operation, high precision automatic control. - High stiffness machine frame. Standard Accessories and Parts: - Tension testing machine - PC - Printer - Control software and card - Head form C - 1000N S type Load cell - Tool Optional Accessories: - Other size head form (PU) Technical Specifications / Characteristics: - Model: T002 - Max. Load: 1000N - Load accuracy: 1% - Displacement resolution: 0.01mm - Load increasing speed: 0-500N/S (adjustable) - Load keep time: 0-60 minutes - Standard procedure: From preload to test load 30 seconds. And keeping 2 minutes (adjustable) - Test space: 400mm - Head form: Size C (other sizes can be ordered) - Tension Fork roller: Diameter 25mm and distance in 75mm - Power Supply: 1Phase, 220V, 50Hz
