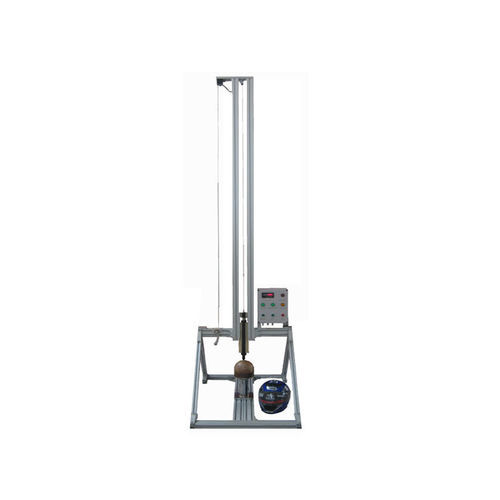

Penetration resistance testing machine T001

manualmaterialfall

Application - Equipped with sturdy and smooth slideway. - Frame is made of aluminum structure material and steel base. - Button controls the penetration cone release. - Manual control of the rise and fall of the penetrating cone. - The accuracy is highly displayed to 1mm. - There is a repairable lead plate on the head of the head. - Automatic sound and light alarm after penetration. The equipment is used to test the anti-penetration ability of the motorcycle helmet. This machine is in conformity with the GB 811: 2010, QCVN 02:2008/BKHCN, EN13087: 2000 and JIS T8133:2007 standards. At the same time, other testing standards can be fulfilled by changing some structure of the system. Parameter - Falling height of penetrating cone: 2000mm ± 5mm (zero automatically) - Penetrate cone weight: 3.0 kg ± 0.045kg - Penetrate cone shape: - Cone angle: 60° ± 0.50 - Cone radius: 0.5 mm ± 0.1 mm - Hardness of cone: 45 HRC to 60 HRC - High display accuracy: 1mm - Head form: made of hard wood with lead metal in top of 30mm diameter - Diameter 165mm and height 133mm with wire inside - Dimension: 800mm x 800mm x 3900mm - Weight: 100kg - Power supply: Single phase 220V/110V, 50/60Hz Standard Accessories and Parts - Structure Aluminum 4040 and 4080 - Control cabinet - Height Indicator - Soft steel wire - Pulley - Hand wheel - Wood head form - Penetrate carrier with electromagnetic - Penetrate head - Vertical penetrate stand - Tool for installation Technical Specifications / Features - Model: T001 - Brand: Laryee - Application: Anti-penetration testing for motorcycle helmets - Standards: GB 811:2010, QCVN 02:2008/BKHCN, EN13087:2000, JIS T8133:2007 - Frame: Aluminum and steel base - Display accuracy: 1mm - Automatic sound and light alarm - Manual and button controls - Repairable lead plate on head form - Dimension: 800mm x 800mm x 3900mm - Weight: 100kg - Power supply: 220V/110V, 50/60Hz
