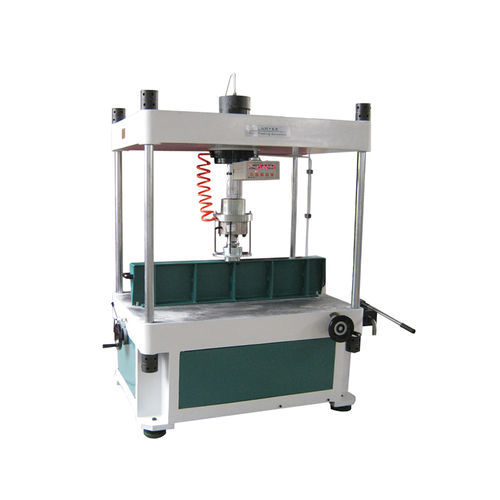

Test calibration machine CM25

Product Overview: The CM25xx series load calibration machine combines load calibration functionality with a loading mechanism. It features two grades of loading devices: main and fine adjustment. The machine is capable of force compensation during precise loading or load holding. With skilled operation, the load can be maintained for more than 60 seconds within 0.15% accuracy. This machine is widely used for testing or calibrating various types of load cells, balances, wheel load weighers, or scales. It is also suitable for load testing of large structural parts. Key Specifications: - Load Capacity: 20000kg (two weighers, each max 10000kg) - Accuracy: 0.15% - Load Test: By load cell - Load Display: Digital, with unit change options: kg, N, KN, MN, lbf, and tf - Load Method: By hand pump - Calibrate Position: One or two weighers in one test - Power Supply: AC 110/220V 60/50Hz - Dimension: (L)1450 × (W)1000 × (H)1750 mm - Weight: 1250kg - Product Type: Load Calibration Machine - Model: CM25 Series - Application: Testing/calibrating load cells, balances, wheel load weighers, scales, and large structure part load tests
