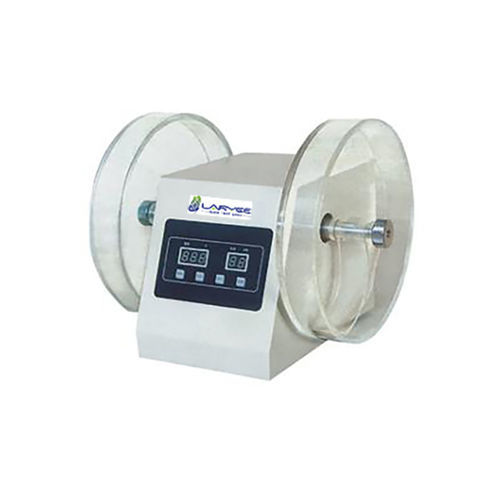

Abrasion tester LYTF-2

Application: - LYTF-2 series of instruments are used for detecting friability/abrasion of tablet. Applicable Standards: - National standard (Chinese codex) 2010 - Corporate standard (Dissolution tester) Q/12XQ0189-2010 Features: - Two drums run synchronously. Auto stop at timing point. - The drum is made of high quality hyaline acryl. - The speed and revolution of the drum can be preset at any time, either preset or real data is displayed on the LED. - AMPU is used to control all operations, high accuracy is achieved in testing rotary speed and circle number. - Automation: auto-test, auto-diagnose, auto-alarm. Specifications: - Cylinder number: 2 PCS - Cylinder diameter: Φ286mm - Cylinder depth: 39mm - Tablet fall height: 156mm - Rotation speed: (20-90) r/min - Rotation speed accuracy: ±1 r/min - Rotation count: (10-900) r - Rotation count accuracy: ±1 r - Continuous working hours: more than 24 hours - Power: 220V/50Hz/60W or 110V/60Hz/60W - Dimension: (370×300×340)mm - Weight: about 10 kg Technical Specifications: - Model: LYTF-2 - Application: Friability/Abrasion testing of tablets - Standards: National standard (Chinese codex) 2010, Corporate standard Q/12XQ0189-2010 - Automation: auto-test, auto-diagnose, auto-alarm - Display: LED for preset and real data
