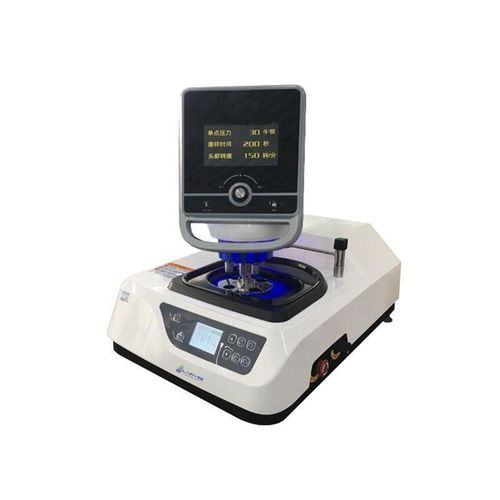

Sample preparation grinding polishing machine AMP2

metallographic samplePLC-controlledsingle

Application: AMP2 automatic grinding/polishing machine adopts international advanced manufacturing technology in accordance with international standards. This series adopts the advanced microprocessor control system, which makes grinding disc and grinding head speed stepless adjustable, sample preparation pressure, time setting. Operation can only change grinding disc and sandpaper fabric, showing more wide applicability. The machine has the following features such as optional grinding disc rotation, quick-change grinding disc, vertical preparation fixture, pneumatic single point loading. This machine has cooling device and abrasive scouring nozzle, equipped with beautiful and practical ABS shell, stainless steel standard parts, and it is never rust. This series is applicable to rough grinding, fine grinding, coarse polishing and polishing process as well as it is an ideal equipment for enterprises, scientific research institutions and colleague labs. Specification: - Model: AMP2 - Disc Diameter: Φ250mm (Φ200mm, Φ300mm can be customized) - Work Disc No.: 1 - Rotational Speed: 50-1000rpm & 150/300rpm - Rotational Direction: Clockwise or anticlockwise - Power Head Speed: 50-150rpm - Loading Range: 5-60N - Sample Preparation Time: 0-995S - Preparation Sample Quantity: 4 PCS - Sample Diameter: Φ30mm - Lighting: LED - Air Pressure: 0.6-0.9MPa - Input voltage: Single-phase voltage AC220V/50HZ - Input power: 1.1kw - Dimension: 594mm x 795mm x 687mm - Net Weight: 93kg
