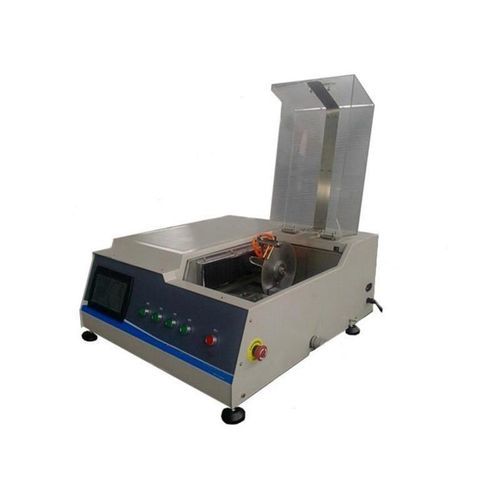

High-speed cutting machine HSCM-5000B

bladefor metalfor ceramics

Application: HSCM-5000B high-speed precision cutting machine is suitable for precise deformation free cutting of metals, electronic components, ceramic materials, crystals, cemented carbide, rock samples, ore samples, concrete, organic materials, biological materials (teeth, bone) and other materials. The equipment adopts PLC control, with high positioning accuracy; Wide speed range; Strong cutting ability; Strong circulation cooling system; The feed speed can be preset; Large touch screen control display; Easy to operate and control; Automatic cutting can reduce the fatigue of operators and ensure the consistency of sample production; The whole cutting process shall be monitored in real time, and alarm prompt shall be given; Wide and bright cutting chamber with safety switch is an ideal equipment for industrial and mining enterprises and scientific research institutes to prepare high-quality samples. Specification: - Model: HSCM-5000B - Feed speed: 0.01~3.00 mm/s (adjustment step is 0.01) - Cutting saw blade speed: 500~5000rpm - Maximum travel Y-axis: 200mm - Cutting blade size: 200×1x32mm - Cutting power: 1000W - Power supply: 220V 50Hz - Overall dimension: 820mm × 735mm × 435mm
