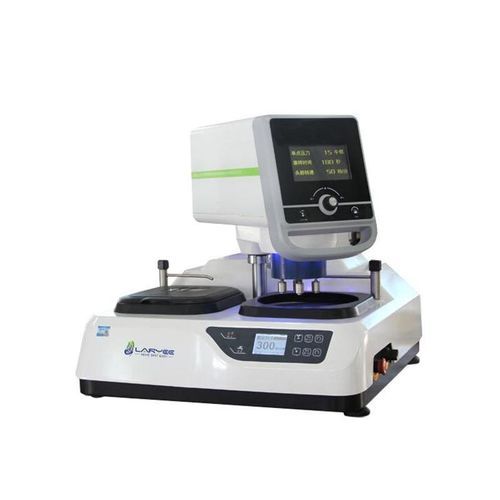

Metallographic sample grinding polishing machine AMP2S

for sample preparationmanually-operatedlapping

Product Details: AMP2S metallographic grinding and polishing machine (two-disc desktop machine) is a new generation of high-precision grinding and polishing equipment with automatic sample preparation process, which is manufactured according to industry standards and using process technology. It is suitable for automatic sample preparation in the process of rough grinding, fine grinding, rough polishing to fine polishing of metallographic samples. It is an ideal sample preparation equipment for enterprises, scientific research units and laboratories of colleges and universities. Specification Table: - Model: AMP2S - Grinding and polishing disc diameter: φ250mm (φ200mm, φ300mm can be customized) - Grinding and polishing disc speed: 50-1000r/min (stepless speed regulation), 150r/min, 300r/min - Grinding and polishing head speed: 50-150r/min (stepless speed regulation) - Loading Range: 5-60 Newtons (N) - Sample preparation time: 0 ~ 995 seconds (S) - Input Power: 1.1KW - Compressed air pressure: 0.6 ~ 0.9Mpa - Specimen diameter: φ30mm (can be customized φ22mm and φ45mm or other sizes) - Maximum number of samples per time: 4 PCS - Working lighting: LED - Dimensions: 758×785×680(mm) - Input voltage: single-phase AC220V 50Hz
