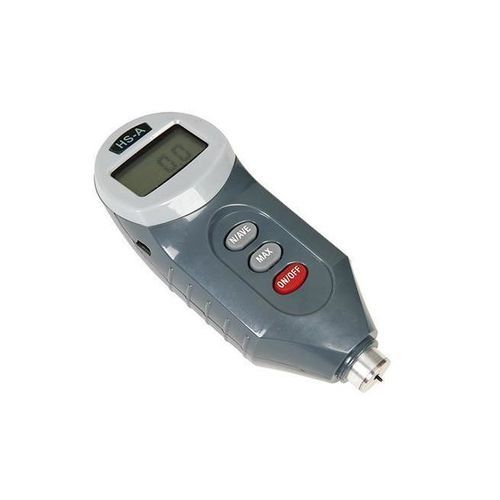

Shore hardness tester HS series

Shore AShore Dportable

Product Overview: HS series shore hardness tester is an advanced integrated digital display type of portable tester that can be used to determine the shore hardness value of rubber and plastic products. It has the advantages of compact structure, accurate measurement value, convenient carrying, light weight and easy operation. It is the ideal measuring instrument for use on the spot. Standards: DIN 53505, ASTM D 2240, ISO 7619, JIS K7215 Features: - With max value, average value latch automatic computation and under-voltage alarm function. - With interface to computer to achieve data communication. - With automatic shutdown function. - After equipping with operation stand, can achieve higher precision measurement. Specifications: Description | HS-A | HS-AO | HS-D Measuring Range | 0-100HA | 0-100AO | 0-100HD Resolution | 0.1HA | 0.1AO | 0.1HD Accuracy | ≤±1HA (20-90HA) | ≤±1AO (20-90AO) | ≤±1HD (20-90HD) Environment | 0-40℃ Power | 3×1.55V button cell battery / 4.5V AC to DC power adapter Dimensions | 142×52×42mm Weight | About 300g Application | It is suitable for plastic, synthetic rubber, seals, tires, rubber roller, rubber hose/belt, wire and cable, shock absorber, etc. | It is suitable for rubbers in the low-hardness range and cellular rubbers, etc. | It is suitable for hard plastic, thermoplastic, hard resin, nylon, and organic glass, hard rubber, and anti-corrosion coating materials, flame retardant materials, paint, etc. Operation Stands: - Better precision is obtained by using a stand with a weight centred on the axis of the indentor to apply the pressure foot to the test piece. - This stand is composed of a handle, weight, adjustable glass workbench, holding device and a lifting column, which can easily and accurately measure Shore hardness. - SAC-J is suitable for two kinds Shore hardness tester for HS-A and HS-AO. - SD-J is suitable for HS-D Shore hardness tester. Technical Specifications: - Model: HS-A; HS-AO; HS-D - Measuring Range: 0-100HA / 0-100AO / 0-100HD - Resolution: 0.1HA / 0.1AO / 0.1HD - Accuracy: ≤±1HA (20-90HA) / ≤±1AO (20-90AO) / ≤±1HD (20-90HD) - Environment: 0-40℃ - Power: 3×1.55V button cell battery / 4.5V AC to DC power adapter - Dimensions: 142×52×42mm - Weight: About 300g - Application: See table above for details per model
