Vickers hardness tester

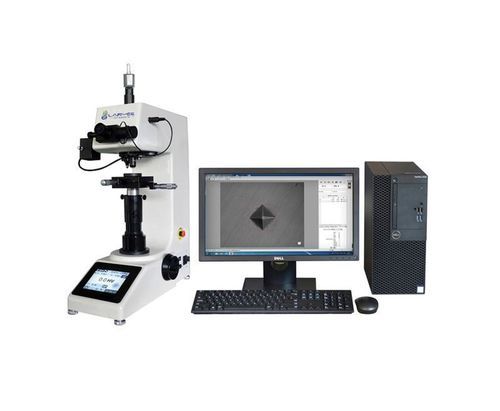

Knoop/Vickersbenchtopwith printer

Introduction

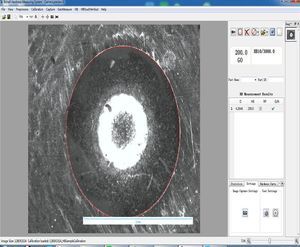

CCD image automatic measuring system combines dedicated measurement software with a microhardness tester to automate indent observation and hardness calculation. The operator completes testing via keyboard and mouse, reducing visual fatigue and manual measurement errors. A CCD camera captures indentations and the software measures them directly on‑screen; test conditions and results are displayed clearly for efficient control.

Standard Configuration

• Computer (CPU: i3, 4 GB RAM, 500 GB HDD, 19" LCD) — 1 set
• Inkjet printer — 1 set
• CCD camera (1.30 MP) — 1 set
• Adapter tube — 1 pc
• USB key (software) — 1 pc
• Measurement software — 1 pc

Features

• Integrated software and hardness tester for automated measurement workflow
• CCD camera observation and direct on‑screen indentation measurement
• Single‑point and random multi‑point measurement with statistical processing
• Two‑point or multi‑point spacing and layer depth measurement
• Measurements along X and Y axes; automatic calculation of penetration/depth
• Automatic hardness conversions and unit options; statistical calculations and pass/fail thresholds
• Export and save results to Word or Excel; open/store/print images and data; print tables and curves
• Supports Vickers, Knoop and carburizing layer hardness tests
• Selectable objective magnifications; adjustable image contrast and brightness
• Compatible with Windows 7 and Windows XP

Technical specifications

• Model: CCD
• CCD camera: 1.30 million pixels
• Standard computer: CPU i3, 4 GB RAM, 500 GB HDD, 19" LCD
• Image definition: > 540 lines
• Supported tests: Vickers, Knoop, carburizing layer
• Measurement modes: single‑point, random multi‑point, statistical, two‑point/multi‑point spacing
• Measurement directions: X and Y
• Software functions: automatic image‑based measurement, signal conversion, statistics, unit conversion, curve display, threshold pass/fail, export to Word/Excel
• Included accessories: adapter tube, USB key, inkjet printer
• File handling: open, store and print image and data files; print tables and curves
• Operating systems: Windows 7, Windows XP
• Adjustable image parameters: contrast and brightness; selectable objective lenses
