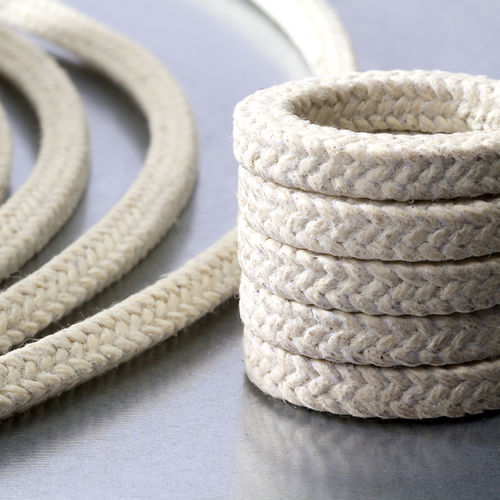

Braided PTFE packing LATTYflon 4789
aramid yarnchemical-resistantfor pumps

braided PTFE packing
braided PTFE packing
braided PTFE packing
Add to favorites
Compare this product


Characteristics

Material
PTFE, aramid yarn
Other characteristics
chemical-resistant
Applications
for pumps, for the chemical industry, for petrochemical applications, for the food industry, for rotary applications, for maritime applications
Operating temperature

Min.: -200 °C (-328 °F)

Max.: 275 °C (527 °F)

Operating pressure

Min.: 0 bar (0 psi)

Max.: 100 bar (1,450.377 psi)

Description

LATTYflon 4789 THE COST-EFFECTIVE ARAMID PACKING Packing made of aramid/staple rayon compound yarns, each single yarn being impregnated with PTFE using our exclusive "Filcoat"-process, then re-impregnated with a mix of PTFE and inert food-quality lubricant during braiding operation. Available in preformed packing rings, on request. Aramid packing, good mechanical performance in all industries. Fluids : Slurry fluids Material : Pumps, rotary movements. Composition Aramid Parameters Pressure : 0 to 100 bar Temperature : -200 to 275 °C Speed : < 20 m/s pH : 2 - 12 Approvals PMUC, WRC/WRAS Type of industries Chemical, petrochemical, pharmaceutical, food and sugar, pulp and paper mills, power stations and Marine (in particular propeller shaft glands).
