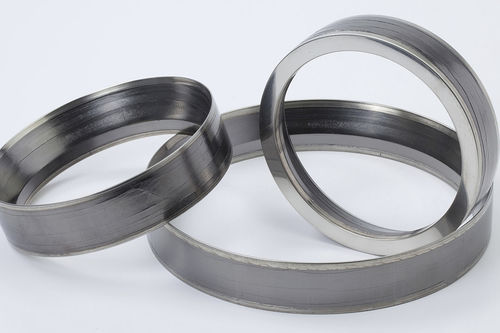

Stainless steel sealing ring LATTYgraf BA
expanded graphite packing

stainless steel sealing ring
stainless steel sealing ring
stainless steel sealing ring
Add to favorites
Compare this product


Characteristics

Type
stainless steel
Material
expanded graphite packing

Description

LATTYgraf BA EXPANDED GRAPHITE AUTOCLAVES RINGS Compressed sealing rings made from various grades of expanded graphite with or without anti-extrusion stainless steel cups. Easy to remove (non-stick), LATTYgraf BA autoclave rings seal tight on uneven surfaces. Suitable for low-pressure applications, no damage is done to the valve housing. Various profiles. Available in diameters from 60 mm (NP 250 bar) to 1,000 mm (NP 160 bar). Easy to remove, non-stick, seal-tight on uneven surfaces, suitable for low-pressure applications, compatible with valve components. Fluids : Water, steam, gas, hydrocarbons. Material : Pipes flanges, Valves. Composition Expanded graphite rings Parameters Pressure : 0 to 250 bar Temperature : 0 to 600 °C Type of industries All industries

Catalogs

CATALOG LATTY
CATALOG LATTY
231 Pages
