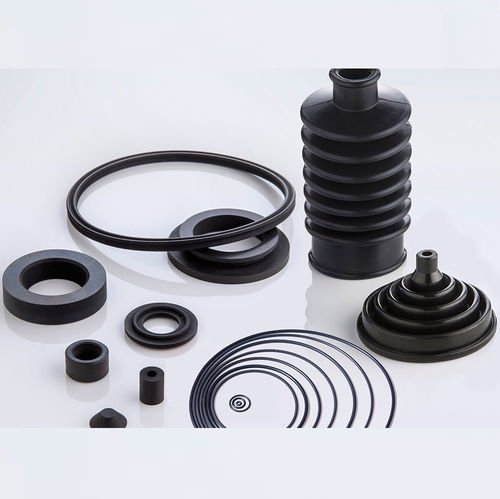

O-ring seal LATTY- E 48Z11 LY 1700flatcircularround

O-ring seal
O-ring seal
Add to favorites
Compare this product
indicative price

Characteristics

Type
O-ring, flat
Configuration
circular, round, profiled, rectangular
Material
elastomer, EPDM
.application
for pumps, for valves, pipe, for the petrochemical industry, for high-temperature applications, for the pharmaceutical industry
Other characteristics
hydraulic, static, dynamic, high-temperature, oil-resistant
Temperature limit

Max.: 170 °C (338 °F)

Min.: -40 °C (-40 °F)

Description

LATTY- E 48Z11 LY 1700 ELASTOMER SEAL BASED ON EPDM QUALIFIED FOR IRRADIATIONS UP TO 1700 KGY The elastomer seal E48Z11LY1700 meets the chemical specifications of PMUC (products and materials usable in nuclear power stations) with values of halogen and sulphur content below 200 ppm (according to GDL procedure D5710/ESD/1990/000295/001). The different forms of EPDM-based elastomer seals are radiation resistant. These seals have been developed for nuclear applications and are approved for irradiations use up to 1700 KGy. They are suitable for dynamic or static sealing. High resistance for irradiations. Qualification carried out with gamma rays dose up to 1700 KGy. Good resistance to weathering, nitrogen, oxygen, hydraulic fluids of phosphate ester-type, polar solvents (water, alcohols, glycols, ketones), steam, detergents. Fluids : Good resistance to weathering, nitrogen, oxygen, hydraulic fluids of phosphate ester-type, polar solvents (water, alcohols, glycols, ketones), steam, detergents. Material : Pipes flanges, Valves. Composition EPDM Parameters Temperature : -40 to 170 °C Type of industries All industries
