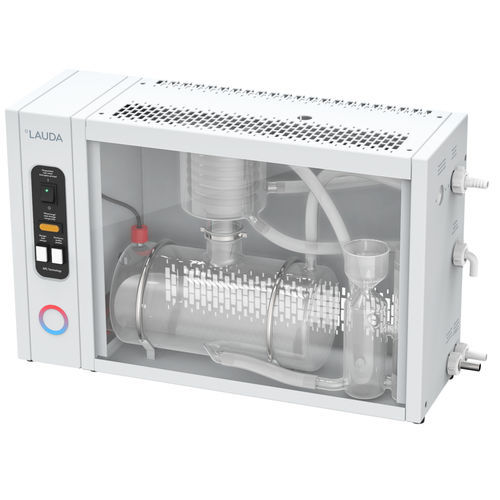

Ultra-pure water purification unit for medical applications Puridest PD 8 G

laboratorysterilization

Description
LAUDA Puridest glass water still for single distillation (fully automatic). The unit requires no specialist for commissioning or maintenance and accepts standard raw water. Ultra-pure water is produced at the push of a button; suitable for bench or wall mounting in laboratories and medical environments.

Features

• Glass water still for single distillation, fully automatic; bench or wall mounting
• Condensers with dribble guard
• Energy saving by distilling heated cooling water
• CO2 degassing via condenser outlet
• Electronic impurity detector triggers automatic rinsing and cleaning of the evaporator by water change
• Distillate withdrawal via hose connection at right-hand side
• Sterilisation of condensers by steam
• Automatic water cut-off to avoid unnecessary water consumption
• Electronic level control throughout the distillation process
• Quartz-sheathed heating elements
• Evaporators, condensers and overflows made of DURAN® / borosilicate glass 3.3
• Solenoid valve to control water supply
• Visible distillation process thanks to easily removable, unbreakable, anti-fog front screen
• Boiler water-level control shuts off power automatically in case of water shortage
• Housing made of galvanised sheet steel, powder coated

Technical specifications

• Part no.: L003019
• Conductivity (distillate) at 25 °C: 2.2 µS/cm
• Production output: approx. 8 L/h
• Heater power max.: 6 kW
• Max. power consumption: 6 kW
• Cooling water flow rate: 2.4 L/min
• Cooling water differential pressure min.: 3 bar
• Maximum cooling water pressure: 7 bar
• Dimensions (W × D × H): 650 × 365 × 390 mm
• Weight: 25 kg
• Ambient temperature range: 10 ... 40 °C
• Power supply: 400 V; 3/N/PE; 50/60 Hz
• Power plug: Power cord with plug (IEC 60309, 5-pin, CEE, red, 16 A)

Accessories (examples)

• Dechlorite filter
• Phosphate cartridge
• Pre-filter 1 µm
