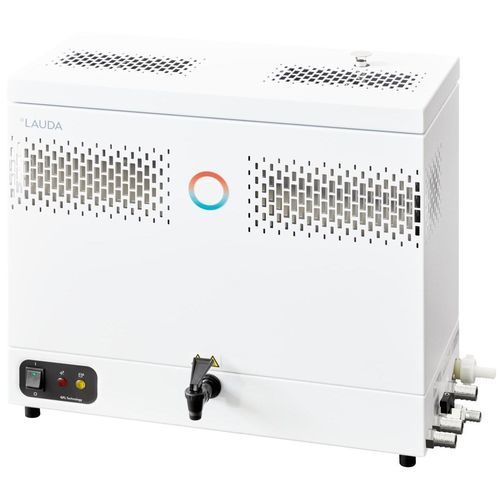

Laboratory water purification unit Puridest PD 8 R

for medical applications

Product description
LAUDA Puridest PD 8 R is a fully automatic single-distillation water still designed for laboratory and medical use. It requires no specialist for installation or maintenance and produces high-purity water at the push of a button.

Features

• Fully automatic single-distillation unit with integrated storage tank, suitable for bench or wall mounting
• Condenser (cooling coil) located inside the storage tank and easily exchangeable
• Automatic water cut-off to avoid unnecessary mains water consumption
• Electronic contamination monitoring with automatic distillation stop and visual cleaning instruction
• Heating element, evaporator, storage tank and condenser made of stainless steel
• Storage tank capacity equals twice the hourly output of the still
• Solenoid valve for controlled water supply
• Evaporator accessible for cleaning
• Automatic refill of the storage tank after distillate withdrawal, controlled by electronic level detection
• Galvanised, powder-coated steel housing with double-wall construction
• Distillate dispensing via drain cock with continuous and momentary positions
• Energy-efficient operation by distilling preheated cooling water
• CO2 degassing via condenser outlet
• Thermostatic low-water safety cut-off

Technical specifications

• Conductivity (single distillate) at 25 °C: 2.3 µS/cm
• Production rate: 8 L/h
• Tank volume: 16 L
• Heater power (max): 6 kW
• Maximum power consumption: 6 kW
• Cooling water flow rate: 1.2 L/min
• Minimum cooling water pressure difference: 3 bar
• Maximum cooling water pressure: 7 bar
• Dimensions (W × D × H): 780 × 410 × 540 mm
• Weight: 34 kg
• Ambient temperature range: 10 ... 40 °C
• Power supply: 400 V; 3/N/PE; 50/60 Hz
• Power plug: Power cord with plug (IEC 60309, 5‑pole, CEE, red, 16 A)
• Product reference: L003015
