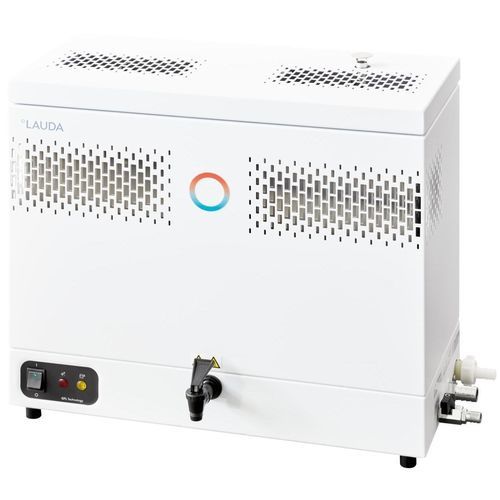

Industrial ultra-pure water purification unit Puridest PD 12 R

laboratory

Product overview
LAUDA Puridest stills require no specialist for commissioning or maintenance and accept a wide range of feed waters. Ultra-pure water is produced at the push of a button. Designed for laboratory and industrial bench or wall mounting, the unit combines automatic operation with accessible maintenance features.

Features

• Water still for single distillation, fully automatic, with storage tank; bench or wall mounting
• Condenser (cooling coil) located inside the storage tank and easily exchangeable
• Automatic water cut-off to avoid unnecessary water consumption
• Electronic contamination monitoring with automatic distillation stop and visual cleaning instruction
• Heating element, evaporator, storage tank and condenser made of stainless steel
• Storage tank capacity equals twice the hourly production
• Solenoid valve for controlled water supply
• Evaporator easily accessible for cleaning
• Automatic refill of the storage tank after distillate removal via electronic level detection
• Housing made of galvanised sheet steel with powder coating; double-walled design
• Distillate withdrawal via drain cock with continuous and touch positions
• Energy-efficient: distillation uses preheated cooling water
• CO2 degassing via condenser outlet
• Thermostatic low-water cut-off for dry-run protection

Technical data

• Conductivity (stage 1 / 25 °C): 2.3 µS/cm
• Production capacity: 12 L/h
• Storage tank volume: 24 L
• Heater power (max): 9 kW
• Max. power consumption: 9 kW
• Cooling water flow rate: 3.3 L/min
• Cooling water differential pressure (min): 3 bar
• Maximum cooling water pressure: 7 bar
• Dimensions (W x D x H): 780 x 410 x 670 mm
• Weight: 45 kg
• Ambient temperature range: 10–40 °C
• Power supply: 400 V; 3/N/PE; 50/60 Hz
• Power plug: Power cord with plug (IEC 60309, 5-pole, CEE, red, 16 A)

Accessories

• Dechlorite filter
• Spare filling (granulate)
• Phosphate cartridge

Technical specifications

• Model: Puridest PD 12 R
• Type: Water still for single distillation, fully automatic
• Material (wetted parts): Stainless steel (heating element, evaporator, storage tank, condenser)
• Distillate capacity: 12 L/h
• Storage tank volume: 24 L (accepts twice the hourly capacity)
• Heater power / max. power consumption: 9 kW
• Cooling water: flow rate 3.3 L/min; min. differential pressure 3 bar; max. pressure 7 bar
• Conductivity (stage 1 / 25 °C): 2.3 µS/cm
• Dimensions (W x D x H): 780 x 410 x 670 mm
• Weight: 45 kg
• Ambient temperature range: 10–40 °C
• Power supply / plug: 400 V; 3/N/PE; 50/60 Hz; Power cord with plug (IEC 60309, 5-pole, CEE, red, 16 A)
• Safety / user features: Electronic contamination monitoring with distillation stop and visual cleaning instruction; thermostatic low-water cut-off; automatic tank refill; evaporator accessible for cleaning
