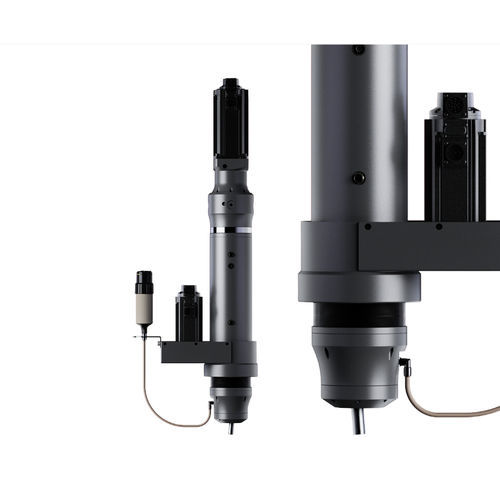

Electric riveting machine SER

orbitalradialservo-driven

Overview
The SER servo riveting system provides high-precision radial and orbital riveting with proprietary closed-loop motion control. With ±0.01 mm displacement accuracy, 1% real-time force feedback and springback compensation, it is engineered for safety-critical assemblies in automotive, new energy and electronics manufacturing.

Key features & advantages

• Soft Approach: progressive rivet engagement with 1% real-time force feedback to prevent material cracking.
• Auto contact-point detection: pressure-based datum detection to control riveting depth and compensate part height variations.
• Springback compensation: maintains hold pressure at target position or force to offset material springback in real time.
• High-precision closed-loop control: ultra-fast response and mass data storage for process traceability.

Performance

• Displacement accuracy: ±0.01 mm
• Max force: 50 kN
• Max speed: 1500 rpm

Related applications

• Automotive body and components
• Electric vehicle battery assemblies
• Consumer and industrial electronics
• White goods and appliances

Technical specifications

• Model/Series: SER
• Motion modes: radial and orbital riveting
• Control: proprietary closed-loop motion control, multi-mode
• Accuracy: ±0.01 mm displacement
• Force capacity: up to 50 kN
• Speed: up to 1500 rpm
• Force feedback: 1% real-time force feedback for progressive engagement
• Datum detection: pressure-based contact-point detection for depth control
• Springback compensation: constant hold pressure at target position or force
• Data: mass data storage for process monitoring and traceability
• Target industries: automotive, new energy, electronics, safety-critical assemblies
