Electromechanical press AEPS

for press-fit pin connector applicationsfor automotive partswith stroke force monitoring

Overview
AEPS is Leetx's universal servo press model. Customers specify the required maximum force and stroke to match their application, avoiding oversized capacity. The system delivers closed-loop servo control and industrial-grade construction in a configurable electromechanical package suited to press-fitting operations.

Key specifications
Maximum speed: 235 mm/s
Maximum pressure/force: 470 kN
Maximum stroke (customizable): 376 mm

Product features

• Right-sized performance: Configurable maximum force and stroke to fit application requirements without unnecessary capacity.
• Complete electromechanical package: Supplied ready for mechanical mounting, electrical connection and rapid commissioning.
• Precise positioning: Standard repeatability 0.01 mm; achievable down to 0.002 mm with an optional external displacement sensor.
• High-accuracy force measurement: Integrated absolute encoder and force sensor providing ~1% system accuracy, 24-bit resolution and 10 kHz sampling.

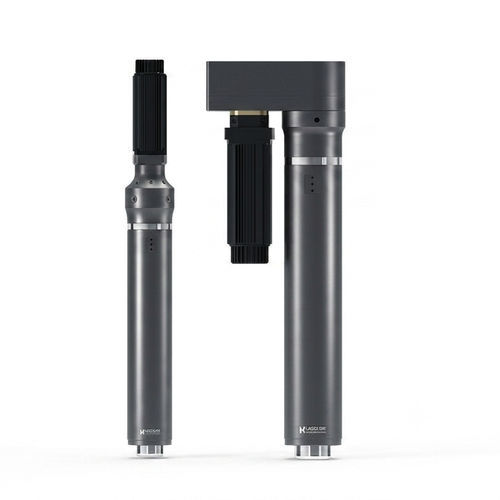

• Flexible mounting: Inline and right-angle variants to accommodate constrained machine layouts.
• Wide force range: Standard options covering 2 kN–500 kN to address diverse press-fitting use cases.

Related applications

• Motor vehicle assembly
• Auto parts manufacturing
• Motor control assembly
• Power battery assembly
• Construction machinery components
• White goods assembly
• Rail transportation components
• Wind power component assembly

Technical specifications

• Maximum speed: 235 mm/s
• Maximum pressure/force: 470 kN
• Maximum stroke (customizable): 376 mm
• Repeatability: 0.01 mm standard; down to 0.002 mm with optional external displacement sensor
• Force measurement accuracy: ~1% system accuracy
• Sensor resolution & sampling: 24-bit resolution, 10 kHz sampling
• Force range: 2 kN – 500 kN (standard options)
• Mounting configurations: Inline and right-angle variants
• Control: Full closed-loop servo control
• Integration: Supplied as a complete electromechanical package for rapid installation
