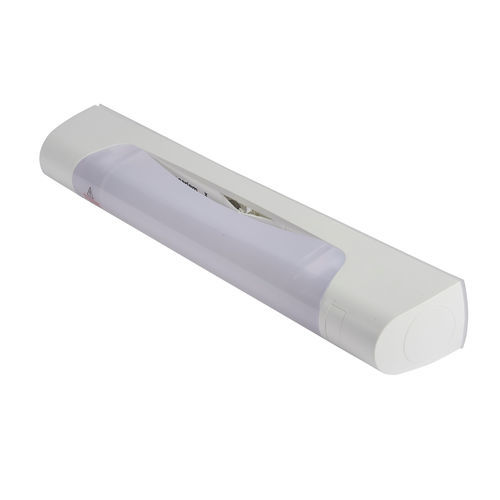

LED lighting Prismaline

with motion sensormains powerpolycarbonate

Description
Prismaline wall light designed for bathroom and kitchen lighting in collective housing, hotels and public buildings.

Presentation

• Prismaline wall light - Standard 470 mm
• Supplied with S19 LED tube
• Power: 8.25 W
• Color temperature: 2700 K (warm white)
• Delivered luminous flux: 480 lumens

Materials and protection

• Body: polypropylene - polycarbonate
• Cover: opaline plastic
• Protection rating: IP24
• Impact resistance: IK04
• Protection class: II
• Glow wire test: 750 °C - 30 s

Application areas

• Social collective housing
• Private collective housing
• Student residences and halls
• Hospitality (hotels)
• Educational establishments
• Healthcare facilities
• Penitentiary establishments

Features and installation

• Wall mounting (horizontal orientation only)
• Designed for surface mounting; not suitable for ceiling/recessed/pivot mounting
• Control mode: wired
• With motion sensor: yes
• With dusk sensor: yes
• Through-wiring compatible, screw terminal, conductor section connectable 1.5–2.5 mm² (max 2.5 mm²)

Technical specifications

• Reference: SL189802
• Model / trade name: Prismaline
• Marque: SARLAM
• EAN / Gencode: 3292290507858
• System power: 8.25 W
• Accepted lamp power: 7 W
• Nominal luminous flux: 480 lm
• Luminaire efficacy: 58 lm/W
• Color temperature: 2700 K
• Color rendering index (CRI): 80-89
• Power factor (cos phi): 0.87
• Rated voltage (Un): 230 V
• Rated current: 35 mA
• Frequency: 50 Hz
• Estimated lamp life: 25 000 h
• Dimensions: length 470 mm, width 60 mm, height/depth 77 mm
• Max cable entry diameter: 16 mm
• Horizontal fixing centre distance: 202 mm
• Number of poles: 2
• Neutral required: Yes
• Halogen-free: Yes
• Home automation compatibility (Apple HomeKit / Google Assistant / Amazon Alexa / IFTTT): No
• Dimmable: No (not compatible with 0-10V, 1-10V, DALI, DMX, DSI, RF, Zigbee, Touch and Dim, etc.)
• Light emission: direct, symmetrical distribution, diffused beam
• Glow wire / fire test: 750 °C - 30 s
• Warranty: 2 years
