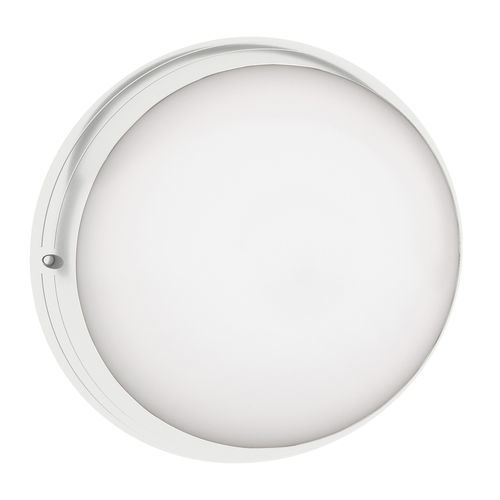

LED lighting Astréo

outdoorIP44with motion sensor

Overview
ASTREO LED functional bulkhead providing efficient lighting for cellars, plant rooms, corridors, stairwells, covered parking and similar spaces, suitable for new installations and renovations.

Key features

• Functional bulkhead ASTREO LED - Standard Ø328 mm
• Integrated HF motion detection
• LED luminous flux 800 lm (delivered) - 11 W - 4000 K (white)
• Line-powered; lights only when presence is detected and ambient light is below threshold

Installation benefits

• Adjustable via integrated potentiometer
• Mountable on wall, ceiling or surface-mounted
• Suitable for continuous row mounting

Recommended applications
Functional bulkhead suitable for cellars, plant rooms, corridors, stairwells, façades and covered parking in both new build and renovation projects.

Technical specifications

• Model / range: Astreo
• Reference: SL532185
• EAN / GTIN: 3292290502020
• Nominal luminous flux: 800 lm
• System power: 11 W
• Correlated colour temperature: 4000 K
• Colour rendering index (CRI): 80-89
• Lifetime: 40,000 hours
• Ingress protection: IP44
• Impact resistance: IK07
• Protection class: II
• Light source: Non-replaceable LED (included)
• Number of modules: 1
• Nominal voltage: 207-253 V AC
• Nominal current: 61-84 mA
• Control gear type: Constant current LED driver
• Dimmable: No
• Light distribution: Symmetric / diffused beam
• Light emission: Direct
• Operating ambient temperature: -5 to 35 °C
• Housing material: Plastic (polycarbonate diffuser and body)
• Housing colour: White
• Cover material: Opal plastic
• Dimensions: External diameter 328 mm, Length 328 mm, Height/depth 107 mm
• Certifications and marks: NF luminaires certified
• Warranty: 2 years (see conditions for professional users)
