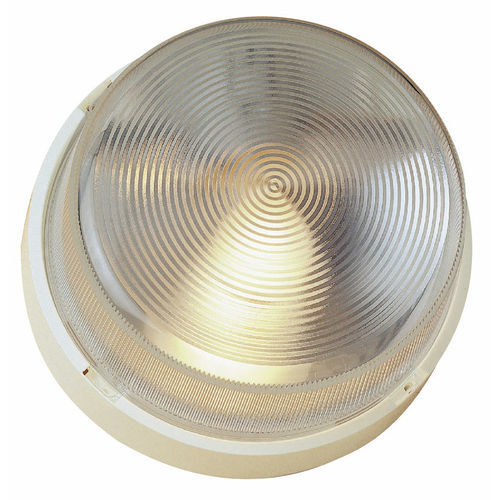

Incandescent lighting 400 270

IP44mains powerwall-mounted

Overview
MAP 400 is a functional bulkhead designed to provide optimal lighting in corridors, common areas, bathrooms, laundries, verandas and similar spaces, suitable for new installations and renovations.

Product features

• Functional bulkhead MAP 400 Ø230 mm - lampholder version
• ON/OFF function - E27 socket to be fitted - porcelain socket - Class II - 850°C / 30 s resistance - Color: White
• Lamp power: 70 W
• IP44 protection (front) - IK07 impact resistance - inner striated tempered glass diffuser
• Housing material: polypropylene

Advantages

• Quarter-turn diffuser fixing for quick maintenance

Range information
MAP 400 is intended for reliable general lighting in corridors, common areas, bathrooms, laundries, verandas and similar environments, for both new-build and renovation projects.

Technical specifications

• Wall mounting: Yes
• Suitable for suspension mounting: No
• Suitable for ceiling mounting: Yes
• Suitable for recessed mounting: No
• Suitable for surface mounting: Yes
• Continuous row mounting possible: No
• Low glare according to EN 12464-1 (UGR < 19): No
• Light source: Incandescent lamp
• Light source supplied: No
• Number of lamps/modules: 1
• Socket: E27
• Housing material: Plastic
• Housing color: White
• Cover material: Structured glass
• Shade finish: None
• Type of voltage: AC
• Nominal voltage (Un) (Min-Max): 220-240 V
• Nominal current (Min-Max): 292-318 mA
• Control gear required: No
• Control gear supplied: No
• Dimmable: No
• Variations (0-10V, 1-10V, DALI, DMX, DSI, RF, Zigbee, etc.): No
• Light distribution element: Optical diffuser / panel / lens
• Light distribution: Symmetrical
• Beam angle: Very wide beam > 80°
• Light emission: Direct
• IP rating, rear face: IP44
• Impact resistance (IK): IK07
• Protection class (IEC 61140): II
• Fire protection symbol "D" (EN 60598-2-25): No
• Ambient temperature (Min-Max): -5 - 40 °C
• Rated luminous flux in emergency mode: 1200 lm
• Suitable for emergency lighting: No
• With motion detector: No
• With dusk sensor: No
• Thermal insulation cover for luminaires: No
• With ventilation grilles: No
• Accepted lamp power (Min-Max): 70-70 W
• Luminaire efficiency (Min-Max): 0-0 lm/W
• System power: 70 W
• Rated luminous flux (IEC 62722-2-1) (Min-Max): 1200-1200 lm
• Light color: White
• Color temperature (Min-Max): 2700-2700 K
• Color rendering index (CRI): 90-100
• Width: 230 mm
• Height/depth: 105 mm
• Length: 230 mm
• External diameter: 230 mm
• Luminous intensity (Min-Max): 0-0 cd
• Smart compatibilities (HomeKit / Google Assistant / Alexa / IFTTT): No
• EAN/Barcode: 3292294002700
