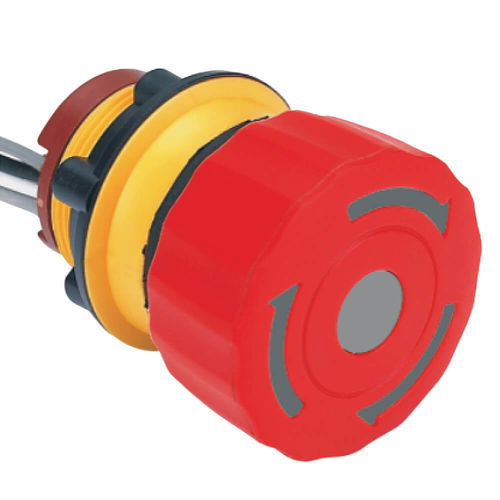

Emergency stop push-button switch CAU22-R series

IP65sealedNO/NC

The CAU22 emergency stop button combines design and robustness: - **Electrical:** - Contact 1x NO/NC or 2x NC 5A/230V. - 'Push-Turn' function - Central point and arrows illuminated by red LED powered by 24V AC/DC or 230V AC. - **Physical:** - LED emergency stop button, for flush mounting in a **22mm diameter cutout**. Maximum panel thickness 5mm. - Body made of self-extinguishing PA plastic UL94-VO. - Protection rating IP65. - **Wire exit available in different lengths.** - Secured by nut. - **Compactness:** - Thanks to its wire exit, the required depth behind the mounting panel is only 14 mm. - **Sealing:** - With its IP65 protection rating, this emergency stop button can be safely installed outdoors. - **Compliance:** - CE, RoHs, Reach. - **Resources:** - Many accessories are available to signal or secure the emergency stop button. - **Variants and order codes:** - Various configurations available with different contact types, supply voltages, and wire lengths. - **Features / Technical specifications:** - Type: Illuminated emergency stop button - Cutout diameter: 22 mm - Protection rating: IP65 - Body: Self-extinguishing PA plastic UL94-VO - Max panel thickness: 5 mm - Exit: Wires of different lengths - Contact: 1x NO/NC or 2x NC, 5A/230V - LED power supply: 24V AC/DC or 230V AC - Function: Push-Turn - Compliance: CE, RoHs, Reach - Mounting: Flush, secured by nut - Depth behind panel: 14 mm
