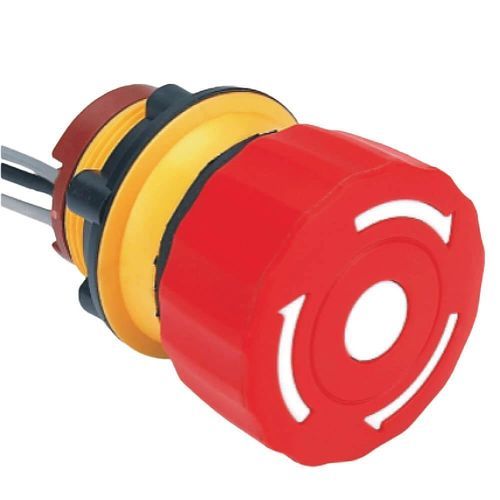

Emergency stop push-button switch CAU22 series

IP652 NC1 NO/NC

The CAU22 emergency stop button combines design and robustness: - Electrical: Contact 1x NO/NC or 2x NC 5A/230V. "Push – Turn" function - Physical: Emergency stop button to be flush-mounted in a 22mm diameter cutout. Maximum panel thickness 5mm. Body made of self-extinguishing PA plastic UL94-VO. Protection rating IP65. Wire output available in different lengths. Secured by nut. - Compactness: Thanks to its wire output, the required depth behind the mounting panel is only 14 mm. - Waterproofing: With its IP65 protection rating, this emergency stop button can be safely installed outdoors. - Compliance: CE, RoHs, Reach. - Technical booklets: Switching and light signaling - Complementary products: Numerous accessories are available to signal or secure the emergency stop button. Variants and order codes: Order code | Contact type | Wire length | Stocked product ---|---|---|--- CAU22-2BS-W15 | 2x NC | 30 cm | instock CAU22-2BS-W100 | 2x NC | 1 m | instock CAU22-2BS-W200 | 2x NC | 2 m | instock CAU22-1ABS-W15 | 1x NO/NC | 30 cm | instock CAU22-1ABS-W100 | 1x NO/NC | 1 m | instock CAU22-1ABS-W200 | 1x NO/NC | 2 m | instock Technical features / Specifications: - Flush-mounting in 22mm diameter cutout - Maximum panel thickness: 5mm - Body: self-extinguishing PA plastic UL94-VO - Protection rating: IP65 - Contact: 1x NO/NC or 2x NC, 5A/230V - Push-Turn function - Wire output in various lengths (30cm, 1m, 2m) - Secured by nut - Required depth behind panel: 14mm - CE, RoHs, Reach compliant
