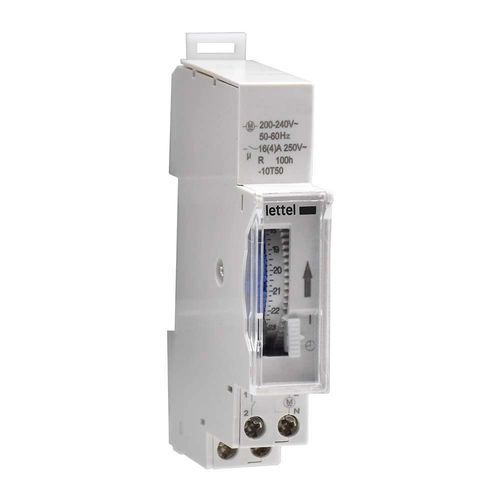

Mechanical time switch CTS1-J1A

analogDIN rail

The CTS1-J1A timer switch combines compact size with ease of use: - Electrical: Power supply: 230V. Daily programming timer in 15-minute steps. 100-hour power reserve in case of power failure. 1 changeover contact 16(4)A/250V. - Physical: 18 mm wide housing, DIN rail mountable. Seal-capable protective cover. - Time Programming: This timer switch allows you to operate devices or electrical circuits during programmed time slots. Commonly used for lighting, irrigation, or heating control applications. - Advantages: Only 1 module wide housing. Mechanical programming for easy use. - Compliance: CE, RoHs. - Applicable Standards: Electromagnetic Compatibility 2014/30/EU: EN60730-1:2011, EN60730-2-7:2010+AC:2011, EN61000-3-2:2014, EN61000-3-3:2013. Low Voltage Directive 2014/35/EU: EN60730-1:2011, EN60730-2-7:2010. - Technical Specifications / Features: Power supply: 230V Daily programming in 15-minute increments 100-hour power reserve 1 changeover contact 16(4)A/250V 18 mm wide DIN rail mountable housing Seal-capable protective cover Mechanical programming CE, RoHs compliant Standards: EN60730-1:2011, EN60730-2-7:2010+AC:2011, EN61000-3-2:2014, EN61000-3-3:2013
