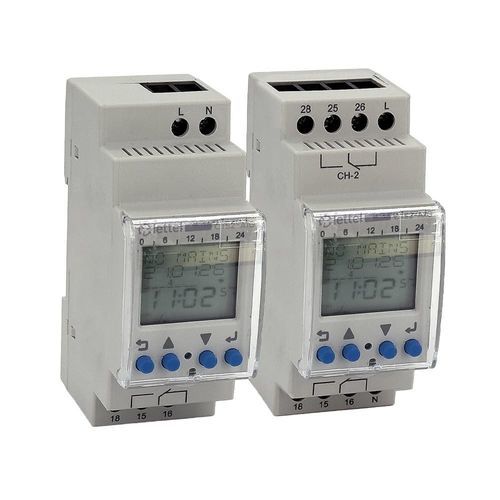

Digital time switch CTS2-AXG series

with built-in astronomical clockDIN rail

Overview
Modular multifunction astronomical time switch for scheduling electrical equipment. Power supply 230 V AC, available in 1 or 2 channels, with astronomical programming (sunrise/sunset management), weekly, yearly, pulse, holiday and random modes. Pre-programmed GPS coordinates (database of 280+ cities) for automatic adjustment to seasonal variations.

Main functions

• Astronomical programming (dawn/dusk mode) with night cutoff.
• Programming modes: weekly, yearly, holiday, pulse, random.
• GPS presets: select a pre-recorded city or enter GPS coordinates manually.
• Settings protected by password.
• Integrated backup for parameter retention during power loss.

Programming
Programming is performed via an intuitive menu available in French and English. The user can select a predefined city or enter GPS coordinates. Daily programs are viewable directly on the display. Password protection secures settings and the backup guarantees parameter retention in case of power failure.

Applications

• Automation of outdoor lighting and illuminated signage.
• Control of commercial display case lighting.
• Control of heating or ventilation systems according to time slots.
• Suitable for residential, commercial and industrial installations.
• Random mode suitable for presence simulation and energy optimization.

Usage tips

• Choose the number of channels according to the circuits to be controlled.
• Use astronomical programming to automate outdoor lighting.
• Select the nearest city or enter GPS coordinates for accuracy.
• Regularly check stored programs to ensure consistency.
• Protect access to programming with a password.
• Install the time switch on a DIN rail in a compliant electrical cabinet and disconnect power before any intervention.

Variants and order codes
Order code | Number of channels | Contact type | Stock status
CTS2-A1G | 1 | 1x NO/NC | instock
CTS2-A2G | 2 | 2x NO/NC | instock

Technical specifications

• Power supply: 230 V AC
• Number of channels: 1 channel (CTS2-A1G) or 2 channels (CTS2-A2G)
• Contact type: NO/NC
• Rated current: 16 A
• Backup time: 6 years without power
• Housing: modular
• Width: 2 modules
• Cover: sealable
• Mounting: DIN rail
• Programming modes: astronomical, weekly, yearly, pulse, holiday, random
• GPS database: more than 280 pre-recorded cities (France and Europe)
• Interface: menu in French and English, daily program display
• Security: password protection
