Bi-metal thermostat GTA-THRV
differentialNCNO

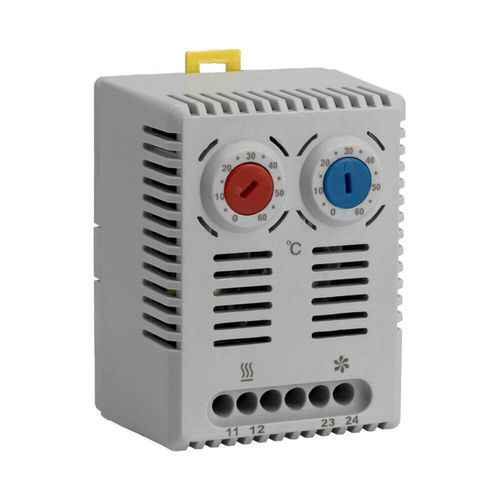

Bi-metal thermostat - GTA-THRV - Lettel - differential / NC / NO

Bi-metal thermostat - GTA-THRV - Lettel - differential / NC / NO - image - 2

Add to favorites

Compare this product

Go to the Lettel website for more information

Characteristics

Heating technology

bi-metal

Type

differential

Contact type

NC, NO

Electrical connection

screw terminal

Mounting

DIN rail

Applications

for electrical cabinet

Temperature

Max.: 60 °C
(140 °F)

Min.: 0 °C
(32 °F)

Switching power: current

10 A

Switching power : voltage

250 V

Description

The GTA-THRV thermostat is used to activate a heating element and a fan when the set temperature thresholds are exceeded. - Electrical Features: - Bimetallic thermostat. - Contact 1NO + 1NC, breaking capacity 10A/250Vac or 30W/24-72Vdc. - Temperature Range: - Adjustment of the 2 contact triggering thresholds using the front potentiometers: - Set points adjustable from 0 to +60 °C; - Fixed hysteresis +/-5°C. - Integration: - Mounting on DIN rail, 3-module width. - Connection via screw terminals. - Functionality: - The thermostat allows the control of heating elements and fans or air conditioners in electrical cabinets. - Standards and Certifications: - CE, RoHs, REACH. - Features / Technical Specifications: - Type: Dual hot/cold bimetallic thermostat (NC+NO) - Contacts: 1NO + 1NC - Breaking capacity: 10A/250Vac or 30W/24-72Vdc - Adjustment range: 0 to +60 °C - Hysteresis: +/-5°C (fixed) - Mounting: DIN rail, 3-module width - Connection: Screw terminals - Compliance: CE, RoHs, REACH
