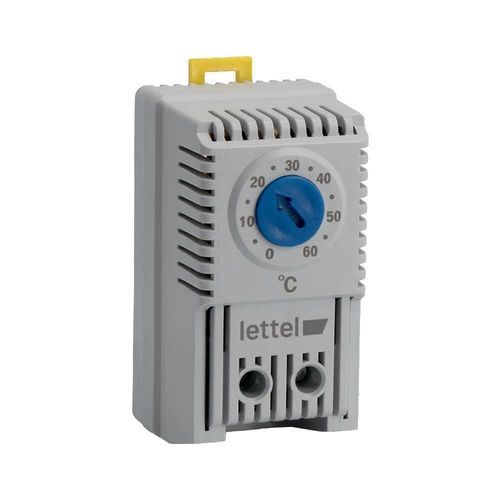

Bi-metal thermostat GTA-THV

adjustableNOscrew terminal

The GTA-THV thermostat is used to activate a fan or air conditioner when the temperature exceeds the set threshold. - Electrical: Bimetallic thermostat. NO contact, breaking capacity 10A/250Vac or 30W/24-72Vdc. - Temperature range: Set the contact trigger point using the front potentiometer: - Adjustable set point from 0 to +60 °C; - Fixed hysteresis +/-5°C. - Integration: DIN rail mounting, 2-module width. Connection via screw terminals. - Applications: The thermostat allows the control of fans or air conditioners in electrical cabinets. - Compliance: CE, RoHs, REACH. - Type: Ventilation Thermostat (NO) - Model: GTA-THV - Contact: NO (Normally Open) - Breaking capacity: 10A/250Vac or 30W/24-72Vdc - Adjustment range: 0 to +60 °C - Hysteresis: +/-5°C - Mounting: DIN rail, 2 modules - Connection: Screw terminals - Certifications: CE, RoHs, REACH
