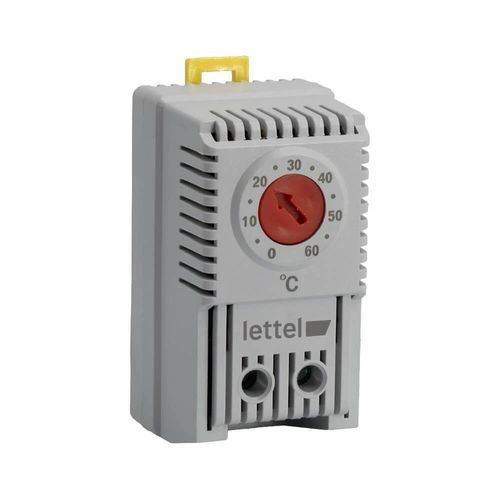

Bi-metal thermostat GTA-THR

NCscrew terminalDIN rail

The GTA-THR thermostat is used to activate a heater when the temperature falls below the set threshold. - Electrical: Bimetallic thermostat. Normally closed contact, breaking capacity 10A/250Vac or 30W/24-72Vdc. - Temperature range: Set the contact trigger point using the front potentiometer: - Adjustable set point from 0 to +60 °C; - Fixed hysteresis +/-5°C. - Integration: DIN rail mounting, 2-module case width. Connection via screw terminals. - Applications: The thermostat allows the control of heating elements in electrical cabinets. - Compliance: CE, RoHs, REACH. - Features / Technical specifications: - Type: Bimetallic thermostat - Contact: Normally closed (NC) - Breaking capacity: 10A/250Vac or 30W/24-72Vdc - Setting range: 0 to +60 °C - Hysteresis: +/-5°C (fixed) - Mounting: DIN rail, 2-module width - Connection: Screw terminals - Certifications: CE, RoHs, REACH
