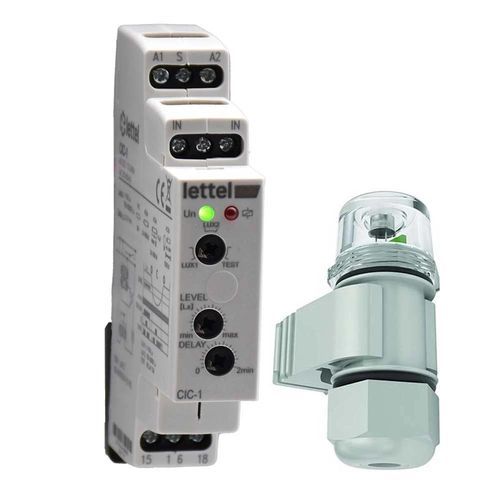

DIN rail twilight switch CIC-1

recessed

The CIC-1 twilight switch allows adjustment at very low light levels. Its waterproof cell ensures safe installation. - Electrical: Power supply: 12 … 240 V AC/DC. Single-pole changeover contact 16A/250V. - Programming: 2 adjustable brightness ranges from 1 to 100 Lux or from 100 to 50000 Lux. Adjustable trigger delay from 0 to 2 minutes. - Physical: Relay housing width 18 mm, DIN rail mountable. Adjustment by front levers. Waterproof IP65 photoelectric cell for surface or flush mounting. - 10 available functions: Allows switching on devices or electrical circuits according to a certain light level. - Applications: Control of outdoor lighting or irrigation. - Compliance: CE, RoHs, REACH. - Applicable standards: EN60669-1, EN60669-2-1 - Technical specifications: Power supply: 12 … 240 V AC/DC Contact: Single-pole changeover 16A/250V Brightness adjustment: 1–100 Lux or 100–50000 Lux Trigger delay: 0–2 minutes Relay housing: 18 mm, DIN rail mountable Photoelectric cell: Waterproof IP65, surface or flush mounting Functions: 10 programmable Applications: Outdoor lighting, irrigation control Compliance: CE, RoHs, REACH Standards: EN60669-1, EN60669-2-1
