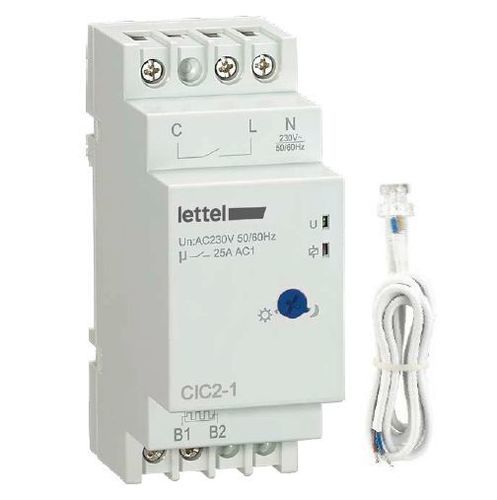

Time switch CIC2-1

The CIC2-1 twilight relay allows for adjustment at very low light levels. Its waterproof cell ensures safe installation. - **Electrical:** - Power supply: 230 V AC/DC. - NO contact 25A/250V. - Breaking capacity: - Incandescent and halogen lamp: 3000W - Fluorescent lamp (compensated): 1000W - Fluorescent lamp (uncompensated): 1300W - **Programming:** - The relay switches upon reaching an adjustable light threshold from 2 to 100 Lux. - Contact delay of 10-15s. - **Physical:** - The relay housing is 36 mm wide, equivalent to 2 modules. It clips onto a DIN rail in an electrical panel. - The twilight switch is equipped with 2 LEDs on the front: - Green LED to indicate power on - Red LED to indicate contact status. - The relay's trigger threshold is adjusted with the front potentiometer. - The detection cell is supplied with the device. Designed for flush installation in a 10 mm cutout, it can be installed outdoors thanks to its IP65 waterproofing. The sensor is equipped with a 1m cable. - **Lighting Control:** - A twilight switch is generally used to control outdoor lighting based on light levels. - The twilight relay can be combined with a weekly timer to add time slot conditions to the light level condition. - **Compliance:** CE, RoHs, REACH. - **Warranty:** 3 years. - **Applicable Standards:** EN60669-1, EN60669-2-1 - **Features / Technical Specifications:** - Adjustment at very low light levels - Waterproof detection cell IP65 - Power supply: 230 V AC/DC - NO contact 25A/250V - Breaking capacity: - Incandescent/halogen: 3000W - Fluorescent (compensated): 1000W - Fluorescent (uncompensated): 1300W - Adjustable light threshold: 2 to 100 Lux - Trigger delay: 10-15s - Housing width: 36 mm (2 modules) - DIN rail mounting - 2 front LEDs (green: power on, red: contact status) - Adjustment via front potentiometer - Detection cell provided, flush installation (10 mm cutout), 1m cable - Outdoor installation possible (IP65) - Compliance: CE, RoHs, REACH - Warranty: 3 years - Standards: EN60669-1, EN60669-2-1
