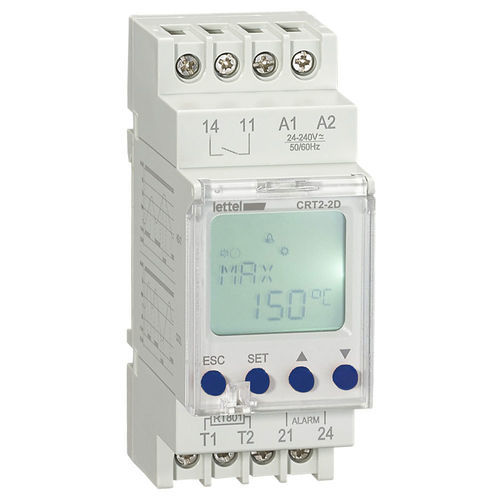

Digital temperature controller CRT2-2D

modularDIN rail

The CRT2-2D thermostat is adjustable from -25 to +130°C, in heating or cooling mode. - Electrical characteristics: Power supply: 24 … 240 V AC/DC. Main contact: 1x NO/NC 16A Alarm contact: 1x NO 2A. - Programming: Setpoint adjustable from -25 to +130 °C, in heating or cooling mode. Adjustable hysteresis from 1 to 30 °C. Alarm contact adjustable between 2 and 10°C offset from the setpoint. - Physical characteristics: The thermostat housing is 18 mm wide, DIN rail mountable. The backlit display shows ambient temperature, setpoint value, operating mode, and contact status. - Programming: Parameter adjustment is done locally using the buttons. The menu is simple and intuitive. - Applications: The thermostat allows control of heating or ventilation in electrical cabinets, greenhouses, industrial premises, etc. - Temperature probes: CRT-D2-S sensors, with stainless steel tip, IP65 waterproof, are available with 2.5 or 5m cable length. Compatible temperature probe: CRT-2D-S - Standards and certifications: CE, RoHs, REACH. - Features / Technical specifications: Adjustable digital thermostat from -25 to +130 °C Heating or cooling mode Power supply: 24 … 240 V AC/DC Main contact: 1x NO/NC 16A Alarm contact: 1x NO 2A Adjustable hysteresis from 1 to 30 °C Alarm contact adjustable between 2 and 10°C offset 18 mm wide housing, DIN rail mountable Backlit display Local programming via buttons, intuitive menu Applications: electrical cabinets, greenhouses, industrial premises Probe compatibility: CRT-D2-S (IP65, 2.5 or 5m cable) Compliance: CE, RoHs, REACH
