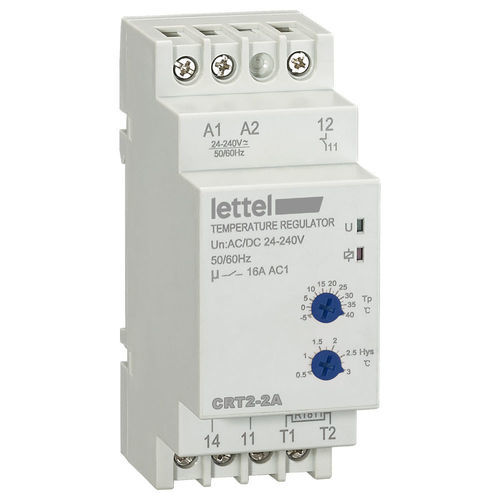

DIN rail thermostat CRT2-2A

for electrical cabinetmodularwith temperature probe

The CRT2-2A thermostat is simple to use: - Electrical: Power supply: 24 … 240 V AC/DC. Main contact: 1x NO/NC 16A - Programming: Using the front panel potentiometers: – Setpoint adjustable from -5 to +40 °C – Hysteresis adjustable from 0.5 to 3 °C. - Physical: The thermostat housing is 36 mm wide, clip-on for DIN rail mounting in an electrical cabinet. It must be used with a temperature probe to be ordered separately. - Applications: The thermostat allows control of heating or ventilation in electrical cabinets, greenhouses, industrial premises, etc. - Associated products: Temperature probes: CRT-A2-S sensors, with stainless steel tip, IP65 waterproof, available with 2.5 or 10m cable length. Temperature probes for CRT2-2A thermostat: Compatible temperature probe - Standards and certifications: CE, RoHs, REACH. - Technical specifications: Power supply: 24 … 240 V AC/DC Main contact: 1x NO/NC 16A Setpoint adjustable: -5 to +40 °C Hysteresis adjustable: 0.5 to 3 °C Housing width: 36 mm, DIN rail mountable Requires separate temperature probe Applications: heating/ventilation control in cabinets, greenhouses, industrial rooms Compatible probes: CRT-A2-S (IP65, 2.5m or 10m cable) Certifications: CE, RoHs, REACH
