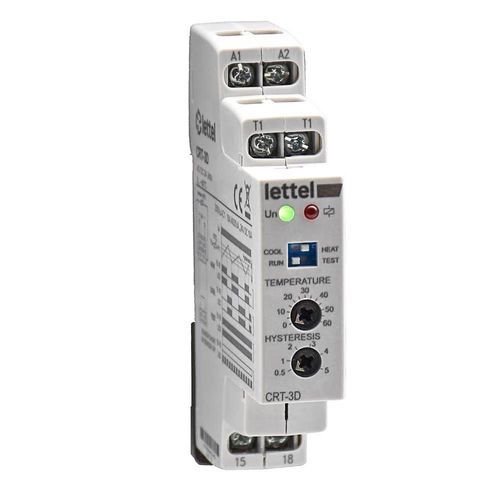

Temperature controller without display CRT-3D

modularDIN rail

The CRT-3D thermostat is adjustable from 0 to 60°C, in heating or cooling mode. - Electrical Features: Power supply 24 … 240 V AC/DC. Single-pole changeover contact 16A/250V. - Programming: Setpoint adjustable from 0 to 60 °C, in heating or cooling mode. Adjustable hysteresis from 0 to 5 °C. - Physical Characteristics: Relay housing width 18 mm, DIN rail mountable. Adjustment via front knobs and switches. Input for NTC12K probe, to be ordered separately. - Features: 10 available functions: allows starting devices or electrical circuits according to a certain temperature level. - Applications: Control of heating or ventilation in electrical cabinets, greenhouses, industrial premises, etc. - Standards and Certifications: Compliance: CE, RoHs, REACH. Applicable standards: EN60255-1, EN60255-26(-27), IEC60730-2-9 - Associated Products: Temperature probes for CRT2-3D thermostat: Compatible temperature probe - Features / Technical Specifications: Adjustable thermostat from 0 to 60°C Heating or cooling mode Power supply: 24 … 240 V AC/DC Single-pole changeover contact 16A/250V Adjustable hysteresis from 0 to 5 °C Relay housing width 18 mm, DIN rail mounting Adjustment via front knobs and switches Input for NTC12K probe (not included) 10 available functions Compliance: CE, RoHs, REACH Standards: EN60255-1, EN60255-26(-27), IEC60730-2-9
