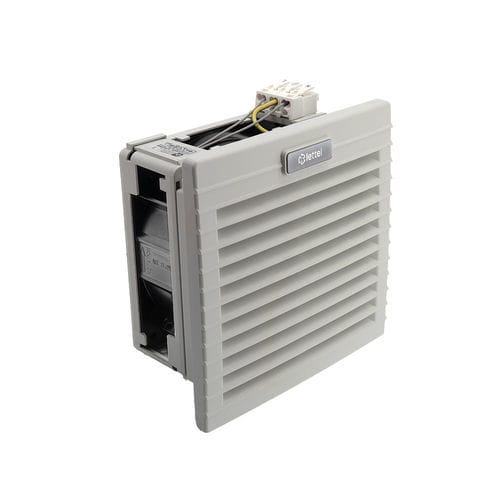

Plastic ventilation grill GTA-125-VFF

with dust filtersquare

Ventilated air grilles enhance air circulation: - **Air Grilles:** The grilles feature subtle outer striations for a positive visual impact. All molded parts are made from highly resistant, self-extinguishing ABS, UL94 VO certified. The RAL is 7035. The foam gasket and filter ensure an IP54 protection rating. - **Filter:** Filter category: G3. The filter can be replaced in seconds thanks to the tool-free opening front grille. - **Fan:** Fans are equipped with spring terminals for quicker and safer connections. By default, the terminal position is above the fan but can be easily changed to below using the Fan Quick Lock system. The default airflow direction is from outside to inside the enclosure but can be easily reversed using the fan's quick lock system. Fan for 230V AC or 24V DC. Consumption is 22W at 230V and 9W at 24V DC. **Airflow 58m³/h without filter and 43m³/h with filter.** - **Integration:** Installation is quick with a simple square cutout in the enclosure and snap-fit mounting system. No screws are needed. **Dimensions: Front 150x150mm, depth 72mm.** **Fitting in cutout 125x125mm.** - **Applications:** Triggered by the GTA-THV thermostat, the ventilated air grille cools the electrical cabinet by expelling hot air. - **Compliance:** CE, RoHs, REACH. **Order Codes:** - GTA-125-VFF-24: 24 V DC, in stock - GTA-125-VFF-230: 230 V AC, in stock **Features / Technical Specifications:** - Front: 150x150mm - Depth: 72mm - Fitting: cutout 125x125mm - Protection rating: IP54 - Material: Self-extinguishing ABS UL94 VO - Color: RAL 7035 - Filter: G3 category - Airflow: 58m³/h without filter, 43m³/h with filter - Consumption: 22W (230V), 9W (24V DC) - Compliance: CE, RoHs, REACH
