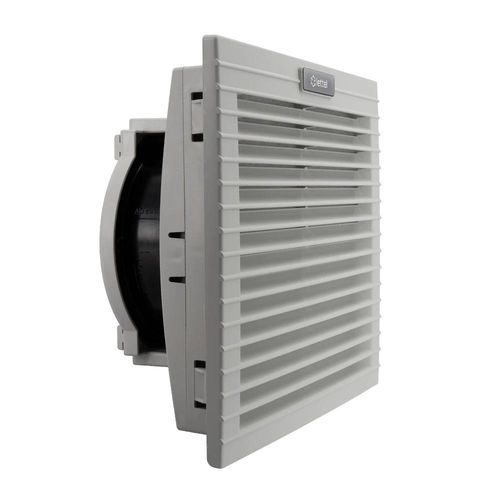

Plastic ventilation grill GTA-223-VFF

with dust filtersquare

Ventilated air grilles accelerate air circulation: - Air Grilles: Grilles feature low external striations for a positive visual impact. All molded parts are made of highly resistant, self-extinguishing ABS, UL94 VO certified. Color RAL 7035. The foam gasket and filter ensure IP54 protection rating. - Filter: Filter category: G3. Filter replacement takes only a few seconds thanks to the tool-free openable front grille. - Fan: Fans are equipped with spring terminals for faster and safer connection. By default, the terminal position is above the fan but can be easily changed to below using the Fan Quick Lock system. By default, the airflow direction is from outside to inside the enclosure, but it can be easily reversed with the quick-lock system. Fan for 230V AC or 24V DC. Power consumption: 40W at 230V, 26W at 24V DC. Airflow: 255m³/h without filter, 202m³/h with filter. - Integration: Quick installation thanks to the simple square cutout and snap-in mounting system. No screws required. Dimensions: Front face 250x250mm, depth 113mm. Mounting cutout: 224x224mm. - Applications: Triggered by the GTA-THV thermostat, the ventilated air grille cools the electrical cabinet by evacuating hot air. - Compliance: CE, RoHS, REACH. - Technical Specifications: Front dimensions: 250x250mm Mounting cutout: 224x224mm Depth: 113mm Material: ABS UL94 VO, RAL 7035 Protection rating: IP54 Filter: G3, quick replacement Fan voltage: 230V AC or 24V DC Power consumption: 40W (230V), 26W (24V DC) Airflow: 255m³/h (without filter), 202m³/h (with filter) Spring terminal connection, reversible airflow Certifications: CE, RoHS, REACH
