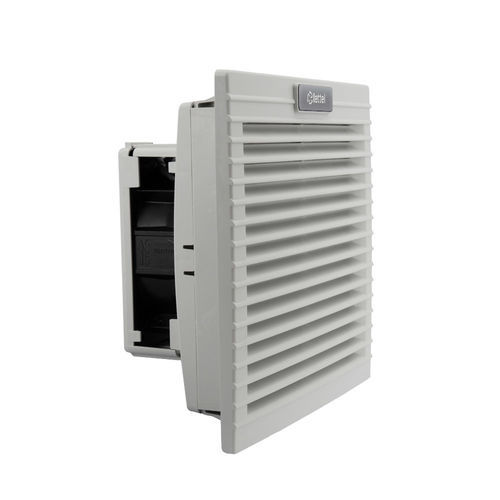

Plastic ventilation grill GTA-176-VFF series

with dust filtersquare

Description
GTA-176-VFF: air intake/exhaust grille integrating a fan and a G3 filter for thermal management of electrical enclosures. Designed to accelerate air circulation and evacuate hot air to cool the enclosure.

Main features

• Fan: spring terminals for quick and secure connection; default airflow direction exterior → interior; direction easily reversible via Fan Quick Lock; airflow 115 m³/h without filter and 84 m³/h with filter; available in 230 VAC (consumption 22 W) and 24 VDC (consumption 9 W).
• Grille: 204×204 mm front in self-extinguishing ABS (UL94 V0), low external texture, colour RAL 7035; foam sealing gasket; together with the filter provides IP54 protection.
• Filter: G3 category; quick replacement in seconds via tool-free front-opening grille.
• Integration: snap-fit mounting without screws; simple square cut-out for installation; total depth 90 mm; fits into 176×176 mm cut-out.

Functions and applications

• Enables active cooling of electrical enclosures, especially when combined with a ventilation thermostat.
• Quick, tool-free installation and simplified maintenance (fast filter replacement).

Standards and compliance

• Compliances: CE, RoHS, REACH.

Variants and ordering codes
Ordering code | Supply voltage | Stock status
GTA-176-VFF-24 | 24 VDC | instock
GTA-176-VFF-230 | 230 VAC | instock

Resources
Documentation available: product datasheet, installation manual and presentation/catalog documents (PDF formats).

Technical specifications

• Model reference: GTA-176-VFF
• Front plate: 204 x 204 mm
• Total depth: 90 mm
• Cut-out: 176 x 176 mm
• Grille material: high-resistance, self-extinguishing ABS (UL94 V0)
• Colour: RAL 7035
• Protection rating: IP54 (with foam gasket + filter)
• Filter: G3 category, front-opening grille without tools
• Airflow: 115 m³/h without filter, 84 m³/h with filter
• Voltages available: 230 VAC (22 W), 24 VDC (9 W)
• Connection: spring terminals
• Airflow system: default direction exterior→interior, reversible via Fan Quick Lock
• Mounting: snap-fit (tool-free installation)
• Compliances: CE, RoHS, REACH
