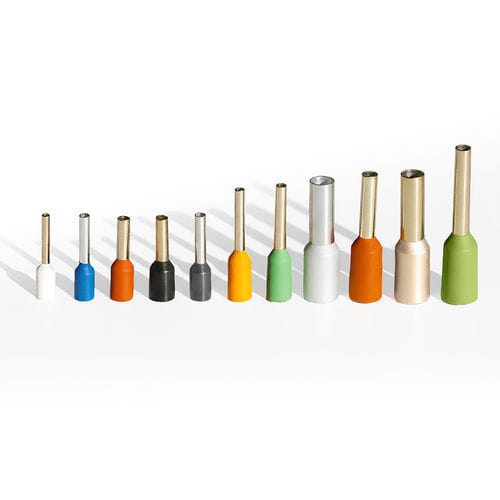

Crimp-on ferrule DIC1 series

plastic

Presentation
Insulated bootlace ferrules (crimp sleeves) for stranded wires. Range covering conductor cross-sections from 0.5 mm² to 50 mm². Standard packaging: 100 pieces per pack.

Applications

• Provide secure connections of stranded conductors in terminal blocks, connectors and screw-type clamps.
• Used in electrical panels, distribution cabinets, industrial equipment and building installations to ensure reliable electrical terminations.

Characteristics

• Design: Insulated crimp sleeve (bootlace ferrule)
• Packaging: 100 pieces per pack

Variants and order codes
Order code | Cable section | Sleeve length | Colour | Availability
DIC1-0.5W8 | 0.5 mm² | 8 mm | White | In stock
DIC1-0.75W8 | 0.75 mm² | 8 mm | Blue | In stock
DIC1-1R8 | 1 mm² | 8 mm | Red | In stock
DIC1-1.5BK8 | 1.5 mm² | 8 mm | Black | In stock
DIC1-2.5GR8 | 2.5 mm² | 8 mm | Dark grey | In stock
DIC1-4O9 | 4 mm² | 9 mm | Orange | In stock
DIC1-6G12 | 6 mm² | 12 mm | Green | In stock
DIC1-16MW12 | 16 mm² | 12 mm | Light grey | In stock
DIC1-25BG16 | 25 mm² | 16 mm | Khaki | In stock
DIC1-35GB16 | 35 mm² | 16 mm | Brown | In stock
DIC1-500L20 | 50 mm² | 20 mm | Khaki | In stock

Technical specifications

• Type: Insulated bootlace ferrules (crimp sleeves)
• Series reference: DIC1
• Supported conductor range: 0.5 mm² to 50 mm²
• Available sleeve lengths (by variant): 8 mm, 9 mm, 12 mm, 16 mm, 20 mm
• Available colours (by section): White, Blue, Red, Black, Dark grey, Light grey, Orange, Green, Khaki, Brown
• Packaging: 100 pieces per pack
• Intended use: secure termination of stranded conductors in terminal blocks, distribution panels and electrical installations
