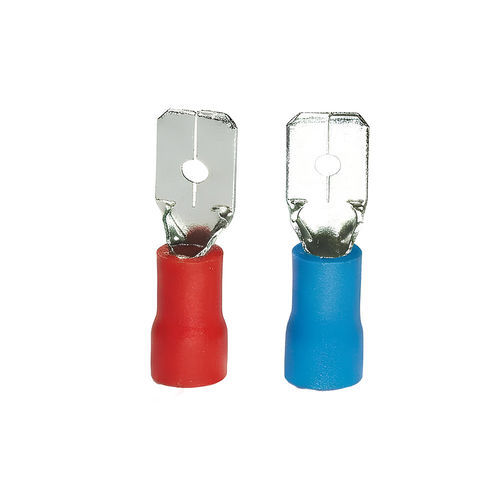

Male cable termination DIT5 series

insulatedPVC

Presentation
Pre-insulated male Faston terminals provide quick, secure electrical connections to female Faston receptacles. Integrated PVC insulation protects against short circuits and accidental contact.

Characteristics

• Physical:
  • Material: tinned electrolytic copper
  • Insulated sleeve: PVC
  • Packaging: bag of 100 pieces
  • Color red – wire section: 0.5–1.5 mm²
  • Color blue – wire section: 1.5–2.5 mm²
• Maximum current:
  • Red: 10A
  • Blue: 15A
• Benefits:
  • Fast, simple connection without screws or soldering
  • Easily removable for maintenance or replacement
  • Excellent conductivity thanks to tinned copper
  • Improved resistance to corrosion and oxidation
  • Integrated PVC insulation for safety and protection
  • Time-saving during wiring and installation

Functions
Pre-insulated male Faston terminals enable quick and secure electrical connections to female Faston terminals, ensuring optimal contact. Integrated PVC insulation protects against short circuits and accidental contact.

Applications
Used in industrial, commercial and residential environments: electrical panels, electromechanical equipment, cable harnesses, maintenance and repair operations. Ideal for replacing or extending existing circuits.

Usage advice

• Select the appropriate wire section to ensure optimal connection
• Use a suitable crimping tool for uniform and secure crimping
• Fully insert the terminal into the Faston receptacle to ensure good contact
• Regularly check the condition of the PVC insulation and the retention of the connection, especially in vibration-prone environments
• Observe the maximum allowable current indicated for each wire section

Variants and order codes
Order code | Color | Wire section | Max current | Blade dimension | Product stock
DIT5-2.8-8R | Red | 0.5 – 1.5 mm² | 10A | 2.8 x 0.8 mm | instock
DIT5-4.8-5R | Red | 0.5 – 1.5 mm² | 10A | 4.75 x 0.5 mm | instock
DIT5-6.3-8R | Red | 0.5 – 1.5 mm² | 10A | 6.35 x 0.8 mm | instock
DIT5-4.8-8R | Red | 0.5 – 1.5 mm² | 10A | 4.75 x 0.8 mm | instock
DIT5-4.8-5B | Blue | 1.5 – 2.5 mm² | 15A | 4.75 x 0.5 mm | instock
DIT5-4.8-8B | Blue | 1.5 – 2.5 mm² | 15A | 4.75 x 0.8 mm | instock
DIT5-6.3-8B | Blue | 1.5 – 2.5 mm² | 15A | 6.35 x 0.8 mm | instock

Documents
Product sheet: Terminals and end sleeves (PDF, 2.2 MB) available for download.

Technical specifications

• Material: tinned electrolytic copper
• Insulation: integrated PVC
• Packaging: bag of 100 pieces
• Colors and sections: red (0.5–1.5 mm²), blue (1.5–2.5 mm²)
• Maximum current: red 10A, blue 15A
• Blade dimensions (examples): 2.8 x 0.8 mm; 4.75 x 0.5 mm; 4.75 x 0.8 mm; 6.35 x 0.8 mm
• Applications: panels, harnesses, electromechanical equipment, maintenance
• Benefits: good conductivity, corrosion resistance, removability, time-saving during installation
