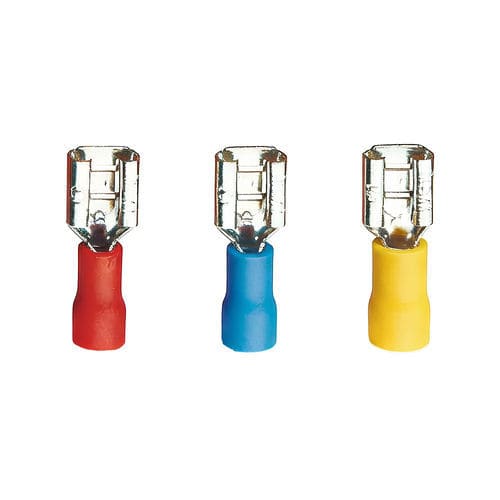

Female cable termination DIT6 series

insulatedcopperPVC

Overview
Pre-insulated female Faston terminals in tinned electrolytic copper with a PVC insulating sleeve, supplied in bags of 100 pieces. Designed for fast, removable and reliable connections on Faston male tabs, suitable for industrial, commercial and residential electrical installations.

Features

• Material: tinned electrolytic copper
• Insulation: PVC sleeve
• Packaging: bag of 100 pieces
• Red – cable section: 0.5–1.5 mm²
• Blue – cable section: 1.5–2.5 mm²
• Yellow – cable section: 4–6 mm²

Maximum current

• Red: 10 A
• Blue: 15 A
• Yellow: 24 A

Benefits

• Quick connection without screws or soldering
• Removable for maintenance and replacement
• High conductivity thanks to tinned copper
• Good resistance to corrosion and oxidation
• Integrated PVC insulation reduces risk of short circuits and accidental contact
• Simplifies wiring and reduces assembly time

Function
Female Faston terminals provide a stable electrical contact with male Faston tabs. The design ensures secure retention of the mating tab and protection against short circuits via the integrated PVC sleeve.

Applications
Suitable for electrical panels, electromechanical equipment, wiring harnesses and general industrial, commercial and residential installations where fast, reliable terminations are required.

Usage recommendations

• Select the correct cable section to ensure optimal contact
• Use an appropriate crimping tool to achieve uniform crimping
• Fully insert the terminal onto the Faston tab to secure reliable contact
• Check the PVC insulation and connection retention regularly in vibration-prone environments
• Respect the maximum allowable current for each cable section

Variants and order codes
Code | Color | Cable section | Max current | Tab dimension | Availability
DIT6-2.8-5R | Red | 0.5–1.5 mm² | 10 A | 2.8 x 0.5 mm | in stock
DIT6-2.8-8R | Red | 0.5–1.5 mm² | 10 A | 2.8 x 0.8 mm | in stock
DIT6-4.8-5R | Red | 0.5–1.5 mm² | 10 A | 4.75 x 0.5 mm | in stock
DIT6-4.8-8R | Red | 0.5–1.5 mm² | 10 A | 4.75 x 0.8 mm | in stock
DIT6-6.3-8R | Red | 0.5–1.5 mm² | 10 A | 6.35 x 0.8 mm | in stock
DIT6-2.8-5B | Blue | 1.5–2.5 mm² | 15 A | 2.8 x 0.5 mm | in stock
DIT6-2.8-8B | Blue | 1.5–2.5 mm² | 15 A | 2.8 x 0.8 mm | in stock
DIT6-4.8-5B | Blue | 1.5–2.5 mm² | 15 A | 4.75 x 0.5 mm | in stock
DIT6-4.8-8B | Blue | 1.5–2.5 mm² | 15 A | 4.75 x 0.8 mm | in stock
DIT6-6.3-8B | Blue | 1.5–2.5 mm² | 15 A | 6.35 x 0.8 mm | in stock
DIT6-6.3-8Y | Yellow | 4–6 mm² | 24 A | 6.35 x 0.8 mm | in stock
DIT6-9.4-1.2Y | Yellow | 4–6 mm² | 24 A | 9.4 x 1.2 mm | in stock

Technical specifications

• Material: tinned electrolytic copper
• Insulation: integrated PVC sleeve
• Packaging: bag of 100 pieces
• Colors and sections: red (0.5–1.5 mm²), blue (1.5–2.5 mm²), yellow (4–6 mm²)
• Corresponding max currents: red 10 A, blue 15 A, yellow 24 A
• Tab dimensions (examples per variant): 2.8 x 0.5 mm / 2.8 x 0.8 mm / 4.75 x 0.5 mm / 4.75 x 0.8 mm / 6.35 x 0.8 mm / 9.4 x 1.2 mm
