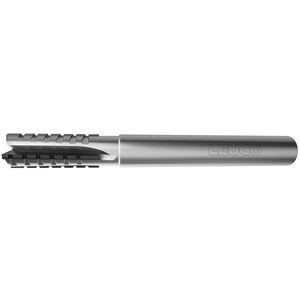

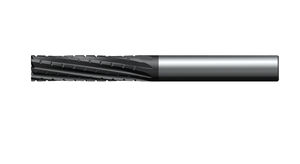

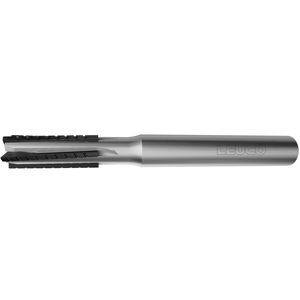

End mill CM010 Mulit-Tooth End Mill SC
solid carbidefacecopying

End mill - CM010 Mulit-Tooth End Mill SC - LEUCO Ledermann GmbH & Co. KG - solid carbide / face / copying
End mill - CM010 Mulit-Tooth End Mill SC - LEUCO Ledermann GmbH & Co. KG - solid carbide / face / copying
Add to favorites
Compare this product

Characteristics

Geometry
end mill
Construction
solid carbide
Type
finishing, roughing, face, slot, profiling, copying, router, plunge
Material
diamond-coated
Treated material
for plastics, for metal, for composites, for non-ferrous materials, wood-plastic composite, for graphite, for composite fiber fabric
Other characteristics
high-performance, high-precision, center cutting, helix angle, high-efficiency, conical, for the aeronautical industry, long, cutting, for automotive applications
Diameter

4 mm, 6 mm, 8 mm, 10 mm, 12 mm
(0.16 in, 0.24 in, 0.31 in, 0.39 in, 0.47 in)

Max.: 25 mm
(0.98 in)

Min.: 4 mm
(0.16 in)

Length

75 mm, 85 mm
(2.95 in, 3.35 in)

Max.: 200 mm
(7.87 in)

Min.: 50 mm
(1.97 in)

Rotational speed

Max.: 30,000 rpm
(188,495.56 rad.min-1)

Min.: 4,000 rpm
(25,132.74 rad.min-1)

Description

I Use on CNC and gantry machines as well as robots I For plunge milling with simultaneous feed in Z-axis and X- or Y-axis I Available with pushing or pulling cutting action I Special tool geometry ensures smooth operation, even on thin parts or with difficult clamping conditions I Reduced cutting forces due to chip breakers and very sharp cutting edges ensure top machining quality I Long tool life due to fine-grain carbide
