End mill CM040 Ball End Mill DP
corner radiusball nosesolid

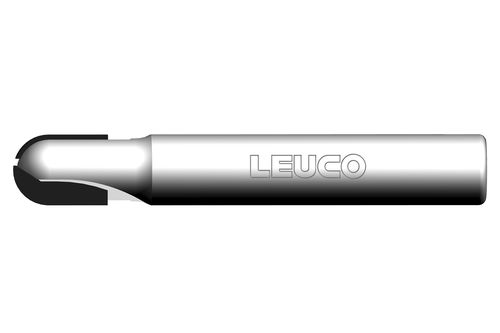

End mill - CM040 Ball End Mill DP - LEUCO Ledermann GmbH & Co. KG - corner radius / ball nose / solid
End mill - CM040 Ball End Mill DP - LEUCO Ledermann GmbH & Co. KG - corner radius / ball nose / solid
End mill - CM040 Ball End Mill DP - LEUCO Ledermann GmbH & Co. KG - corner radius / ball nose / solid - image - 2
Add to favorites
Compare this product

Characteristics

Geometry
end mill, corner radius, ball nose
Construction
solid
Type
finishing, roughing, face, slot, profiling, copying, router, jointing
Material
diamond
Treated material
for CFRP, glass fiber-reinforced composite, for wood, wood-plastic composite, for soft materials, for graphite, for composite fiber fabric
Other characteristics
high-performance, cutting edge, high-precision, center cutting, 2-flute, for CNC machines
Diameter

Min.: 4 mm
(0.16 in)

Max.: 20 mm
(0.79 in)

Length

Min.: 10 mm
(0.39 in)

Max.: 35 mm
(1.38 in)

Description

I Can be used on CNC and gantry machines I Suitable for line-by-line milling, copying shaping or grooving I As standard with alternating shear angle I Also available with shear angle on one side or neutral shear angle I With shear angle on one side or shorter edge length according to customer requirements I Smooth running due to alternating shear angle
