Solid drill bit CC020 Countersink DP - interchangeable pilot
ISO N non-ferrous materialsISO S HRSA and titaniumfor composites

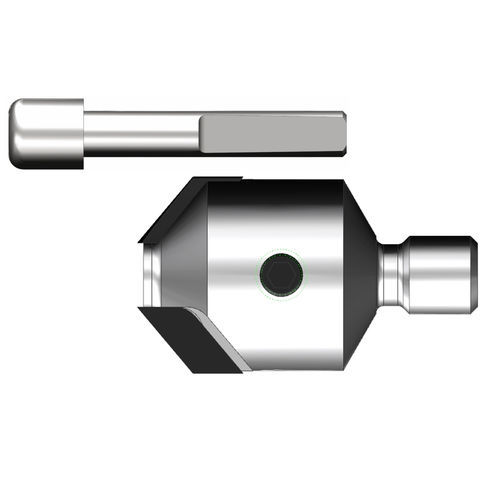

Solid drill bit - CC020 Countersink DP - interchangeable pilot - LEUCO Ledermann GmbH & Co. KG - ISO N non-ferrous materials / ISO S HRSA and titanium / for composites

Add to favorites

Compare this product

Characteristics

Type

solid

Drilled material

for composites, ISO N non-ferrous materials, ISO S HRSA and titanium

Drill bit material

diamond

Other characteristics

high-performance, for the aeronautical industry, chamfering

Diameter

10 mm, 12 mm, 14 mm, 17 mm, 19 mm
(0.39 in, 0.47 in, 0.55 in, 0.67 in, 0.75 in)

Max.: 22 mm
(0.87 in)

Min.: 10 mm
(0.39 in)

Length

Max.: 100 mm
(3.94 in)

Min.: 10 mm
(0.39 in)

Description

I Counterbore with thread (metric / imperial) for the use in hand-held machines (MDU) with top holder I For subsequent countersinking of bores I For optimal riveted joints in the aerospace sector I Suitable for all fiber reinforced plastics, aluminum and other light metals I Designed with interchangeable pilot I With two or three cutting edges by default I Different interchangeable pilots are available for the same tool body I DP-tipping for long edge life and economic efficiency I The interchangeable pilot allows countersinking of different bore diameters with one tool body

Catalogs

No catalogs are available for this product.

See all of LEUCO Ledermann GmbH & Co. KG‘s catalogs

Exhibitions

Meet this supplier at the following exhibition(s):

TMI Tecnomueble International

13-16 Aug 2026 Guadalajara (Mexico)

Other LEUCO Ledermann GmbH & Co. KG products

Countersink

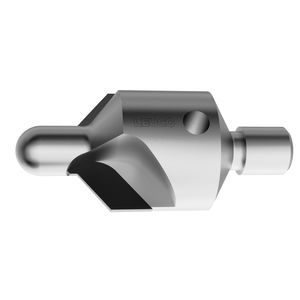

solid drill bit CC010 Countersink DP - integral Pilot
