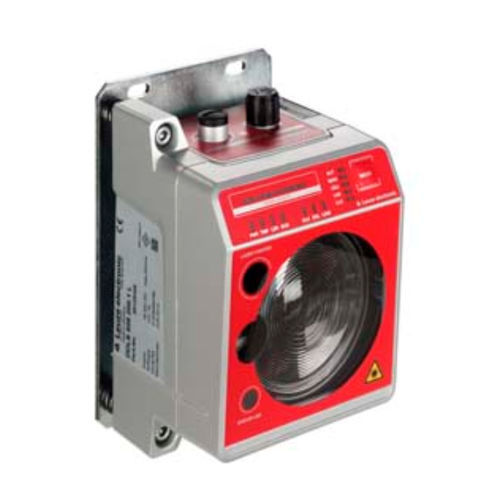

Optical data transmitter DDLS 508 120.4 L

Special version - Integrated laser alignment aid Not influenced by reflective surfaces Operation of parallel light axes Working range - 100 ... 120,000 mm Light source - Laser, Infrared Transmission frequency - F4 Opening angle - 1 ° Supply voltage UB - 18 ... 30 V, DC Number of digital switching inputs - 1 Piece(s) Number of digital switching outputs - 1 Piece(s) Type - PROFINET IRT, EtherNet TCP/IP, PROFINET, PROFIsafe over PROFINET Transmission protocol - EtherNET/IP PROFINET/PROFIsafe PROFINET IO / RT PROFINET IRT TCP/IP 100 Mbit Architecture - Transparent Address assignment - None Transmission speed - 100 Mbit/s Function - Process Switch functionality - None Transmission protocol - TCP/IP , UDP Function - Process Conformance class - B Switch functionality - None Transmission speed - 100 Mbit/s Number of connections - 2 Piece(s) Type of connection - Connector Designation on device - POWER Thread size - M12 Type - Male No. of pins - 5 -pin Encoding - A-coded Type of connection - Connector Designation on device - BUS Thread size - M12 Type - Female No. of pins - 4 -pin Encoding - D-coded Dimension (W x H x L) - 100 mm x 156 mm x 99.5 mm Housing material - Metal Net weight - 1,255 g Type of display - Bar graph LED Ambient temperature, operation - -5 ... 50 °C Ambient temperature, storage - -35 ... 70 °C Degree of protection - IP 65 Approvals - c UL US Test procedure for EMC in accordance with standard - EN 1000-6-4 EN 61000-6-2 Test procedure for noise in accordance with standard - EN 60068-2-64 Test procedure for oscillation in accordance with standard - EN 60068-2-6
