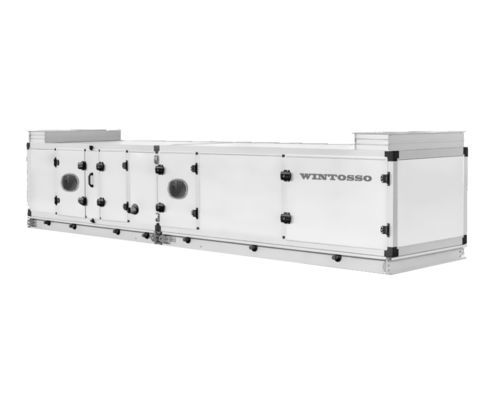

Large air volume air handling unit WINTOSSO AirTech

industrialstainless steel

Product
WINTOSSO AirTech is a family of air handling and ventilation solutions for controlled, hygienic and energy-efficient air movement across industrial and commercial applications.

Main features

• Airflow rate from 2,000 to 90,000 m³/h
• Design and modelling using proprietary AHU design software
• Hygienic AHU design and construction compliant with VDI 6022
• Three-piece PROLAM thermal break profile
• Smooth interior surfaces with rounded corners for hygiene and cleaning
• 40/50 mm double-skin panels
• Inner casing: galvanized steel or stainless steel
• Outer casing: painted galvanized steel
• High-efficiency cooling/heating coil: copper tubes with aluminum fins
• High-efficiency AC and EC motors
• Centrifugal belt-driven and direct-drive centrifugal fans with static and dynamic balancing
• Multiple filter options with varying filtration efficiency
• Steam, water and ultrasonic humidification options
• Opposed blade dampers compatible with actuators
• High-density polyurethane insulation
• PROLAM air seals engineered for minimal leakage
• Easy access to all components for maintenance and service

Applications
WINTOSSO AirTech units are suited to HVAC systems engineering, building automation projects and industrial installations requiring controlled, hygienic and energy-efficient air handling.

Documentation
Product brochure and technical documentation available for download.

Technical specifications

• Airflow range: 2,000 – 90,000 m³/h
• Panel thickness: 40 mm or 50 mm (double-skin)
• Inner casing options: galvanized steel or stainless steel
• Outer casing: painted galvanized steel
• Coil construction: copper tubes with aluminum fins (cooling/heating)
• Motors: high-efficiency AC and EC
• Fans: centrifugal belt-driven and direct-drive centrifugal (static & dynamic balancing)
• Insulation: high-density polyurethane
• Sealing: PROLAM air seals (minimal leakage)
• Hygiene compliance: VDI 6022
• Humidification options: steam, water, ultrasonic
• Thermal break: three-piece PROLAM profile
