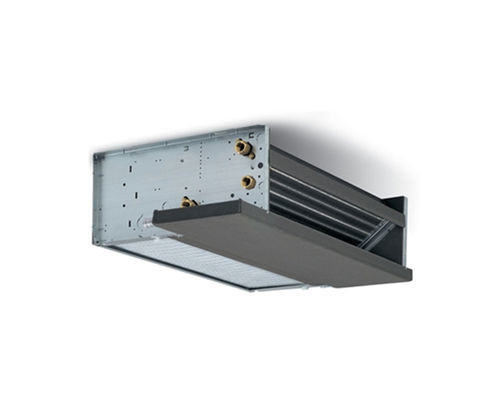

Ceiling-mounted fan coil unit WINTOSSO FanFlow

Add to favorites

Compare this product

Characteristics

Mounting

ceiling-mounted

Air flow

Min.: 510 m³/h
(18,010.48 ft³/h)

Max.: 1,360 m³/h
(48,027.947 ft³/h)

Power

Min.: 2,800 W
(9,553.99 BTU/h)

Max.: 8,500 W
(29,003.19 BTU/h)

Description

Product overview
WINTOSSO FanFlow is a ceiling-mounted fan coil unit engineered for air distribution, cooling and heating in two-pipe and four-pipe hydronic systems. It combines aluminum-finned copper coils with selectable EC or AC fans and a multi-speed directly coupled motor for controlled airflow.

Key features

Cooling capacity: 2.8 ÷ 7.2 kW
Heating capacity: 3.8 ÷ 8.5 kW
Airflow range: 510 ÷ 1360 m³/h
Fan options: EC or AC
Coils with aluminum fins and copper tubes
Multi-speed directly coupled electric motor
Stainless steel drain pan
G3 efficiency air filter with metal frame
Designed for ceiling installation
Compatible with two-pipe and four-pipe plants

Applications
Ceiling-mounted ventilation and air distribution for heating and cooling in offices, commercial premises, classrooms and technical rooms using two-pipe or four-pipe plant configurations.

Technical specifications

Cooling capacity: 2.8 ÷ 7.2 kW
Heating capacity: 3.8 ÷ 8.5 kW
Airflow: 510 ÷ 1360 m³/h
Fan: EC or AC options
Coils: Aluminum fins, copper tubes
Motor: Multi-speed, directly coupled
Drain pan: Stainless steel
Filter: G3, metal frame
Installation: Ceiling-mounted
Plant compatibility: Two-pipe and four-pipe systems
