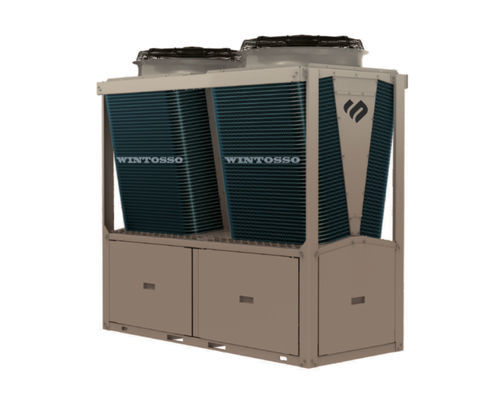

Gas chiller ComfortChill Scroll

for refrigerationindustrialfor air conditioning

Product overview
WINTOSSO Core chillers designed for process and comfort applications. The ComfortChill Scroll range provides modular, energy-efficient scroll chillers with a wide operating temperature window and inverter-driven DC rotary compressors.

Key features

• ComfortChill Scroll product family
• Cooling capacity: 30 – 130 kW
• Heating capacity: 33 – 140 kW
• Modular design: up to 16 units can be connected in parallel
• Wide operating ambient range: -20°C to +48°C
• DC inverter rotary compressor for low-noise, high-efficiency operation
• Inverter frequency range: 0–360 Hz
• High-efficiency U-shaped condenser
• Low-noise operation
• Refrigerants supported: R410A, R32
• Intelligent defrosting technology
• Multiple protection functions to ensure reliable operation

Applications

• Process cooling and heating for industrial applications
• Comfort cooling and heating in commercial buildings
• Scalable modular systems where several units are paralleled for larger installations

Technical specifications

• Model family: ComfortChill Scroll
• Cooling capacity range: 30 – 130 kW
• Heating capacity range: 33 – 140 kW
• Modularity: up to 16 units connectable in parallel
• Ambient operating range: -20°C to +48°C
• Compressor type: DC inverter rotary compressor
• Inverter frequency range: 0 – 360 Hz
• Condenser type: U-shaped high-efficiency condenser
• Refrigerants supported: R410A, R32
• Features: intelligent defrosting, multiple protection functions
• Benefits: energy-efficient operation, low noise levels, environmentally favorable refrigerant options
