Aluminum grating BZ

steelstainless steelplatform

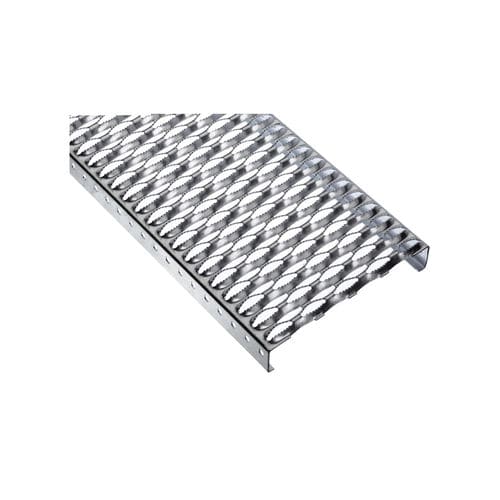

The perforated metal plank type BZ “Zahn” offers a high degree of slip resistance due to its serrated surface structure. For this reason, the BZ plank is especially suitable in those environments, where fats and oils are used. Material - Steel S235JR: 2,0 mm, 2,5 mm Stainless Steel: 1,5 mm, 2,0 mm Aluminium: 2,0 mm, 2,5 mm Surface treatment - Steel: untreated, hot-dip galvanizes, pre-galvanized Stainless Steel: untreated, pickled Aluminium: untreated, pickled, anodized Free cross section - max. zu ~ 50% Width - 120 mm, 180 mm, 240 mm, 300 mm, 360 mm, 420 mm, 480 mm (other widths on request) Height - 30 mm, 50 mm, 75 mm, 100 mm (corresponding to width, thickness and statical specification, other heights on request) Ball proof - Ø 15 mm (ball with Ø 15 mm can´t fall through / 15 mm ball proof) Serration - R11 / v10 (Steel, hot-dip galvanized IFA140422); R13 / V10 (Delstahl IFA1404227) Longitudinal grid - 90 mm (30 mm) Production length - max. 10 m, depending on transport limit
